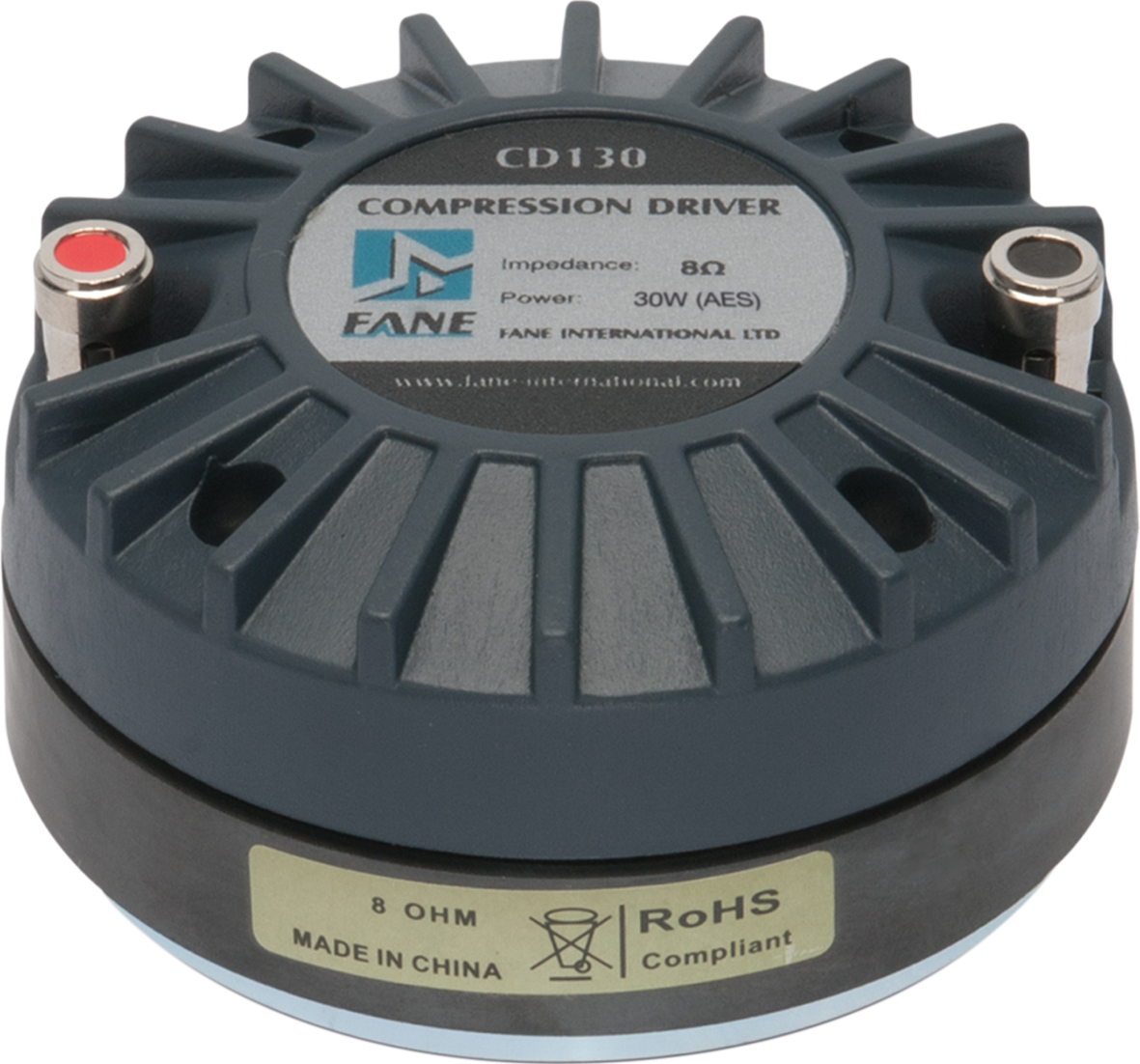

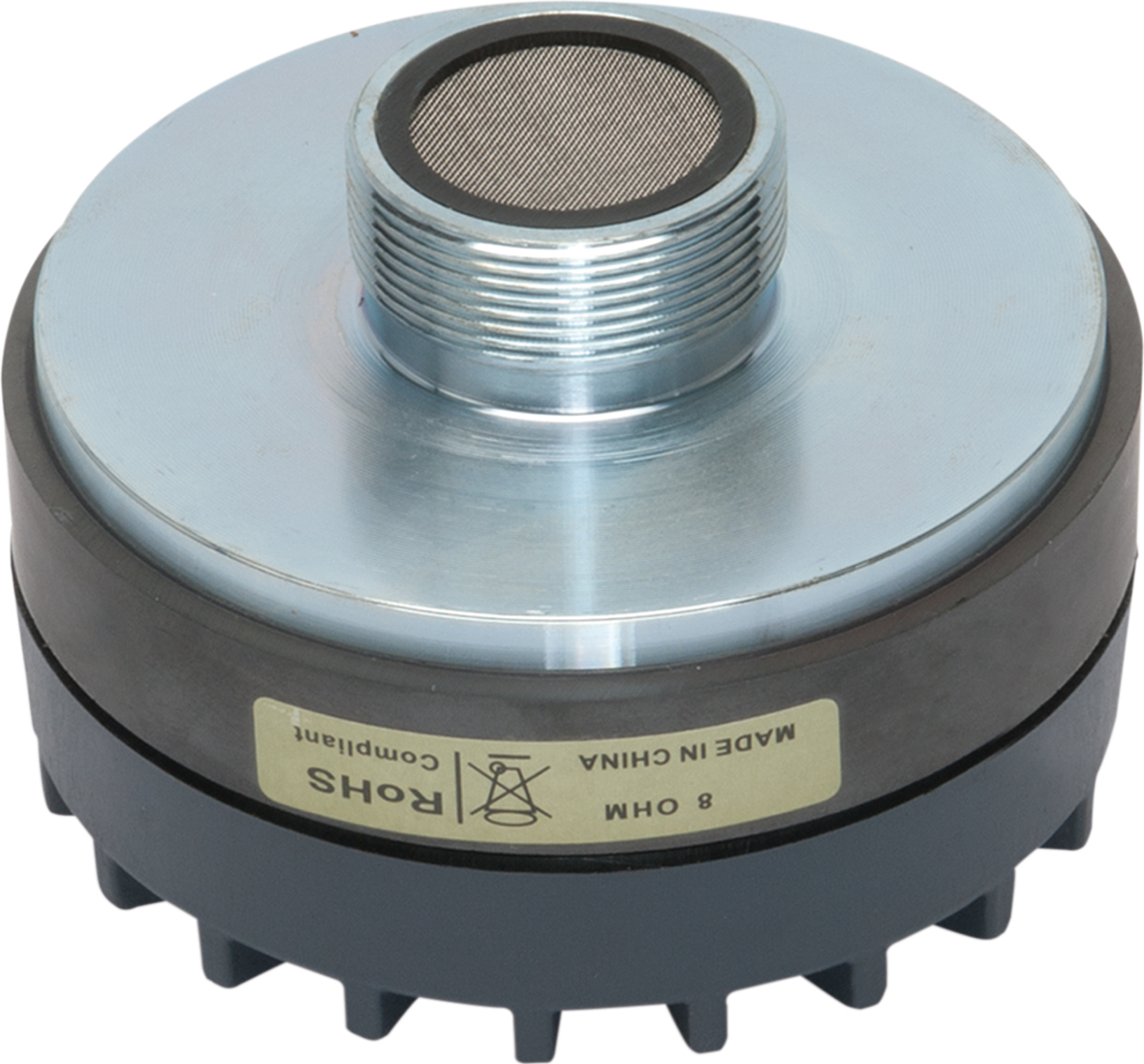

Fane CD.130, 8 Ohm Screw On Compression Driver

The CD130 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard.The CD-130 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD130 features an industry standard screw fit mounting system that is ideally matched to commercially available female screw thread horns.

• 1” Industry standard Exit.
• 1.375” / 34.4 mm Aluminium voice coil.
• Titanium diaphragm.
• 30 W (AES).
• Screw fit mounting.

Features

• Gross Weight (Packaged) (kg) 0.98
• Diameter “/ mm 1” / 25.4 mm
• Gross Weight (kg) 0.98
• Outer box quantity 1
• Outer Box Length (cm) 9.5
• Packaged Depth (cm) 9.5
• Net weight (kg) 0.91
• Power (AES) 30 w (A.E.S.)
• Packaging Plain Box
• Outer Box Height (cm) 7.1
• Inner box quantity 1
• Gross weight outer carton (kg) 0.98
• Outer Box Width (cm) 9.5
• Packaged Height (cm) 7.1
• Throat Size ” / mm 1″ / 25.4 mm
• Packaged Width (cm) 9.5
• Product EAN 5060765031393
• Product Dimensions (mm) 44 x 90
• Packaged dimensions (HxWxL mm) 71 x 95 x 95
• Transport dimensions (mm) 71 x 95 x 95
• Item priced per Each
• Warranty Period 1 Year
• Frequency Response (Hz) 2 kHz – 18 kHz
• Impedance (Ohms) 8
• Mounting Screw on
• Sensitivity (dB) 106
• Voice Coil Diameter ” / mm 1.375″ / 34.4 mm
