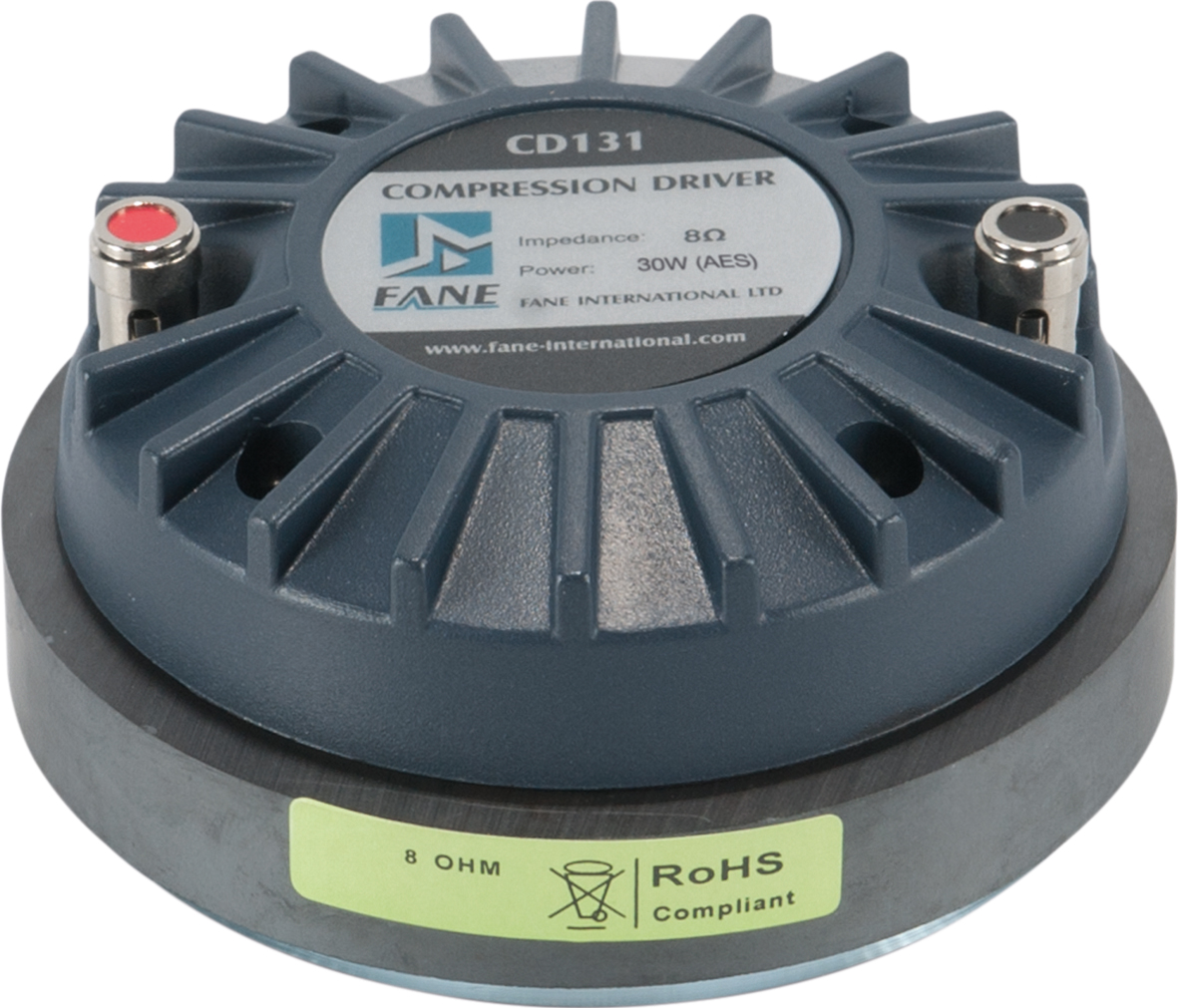

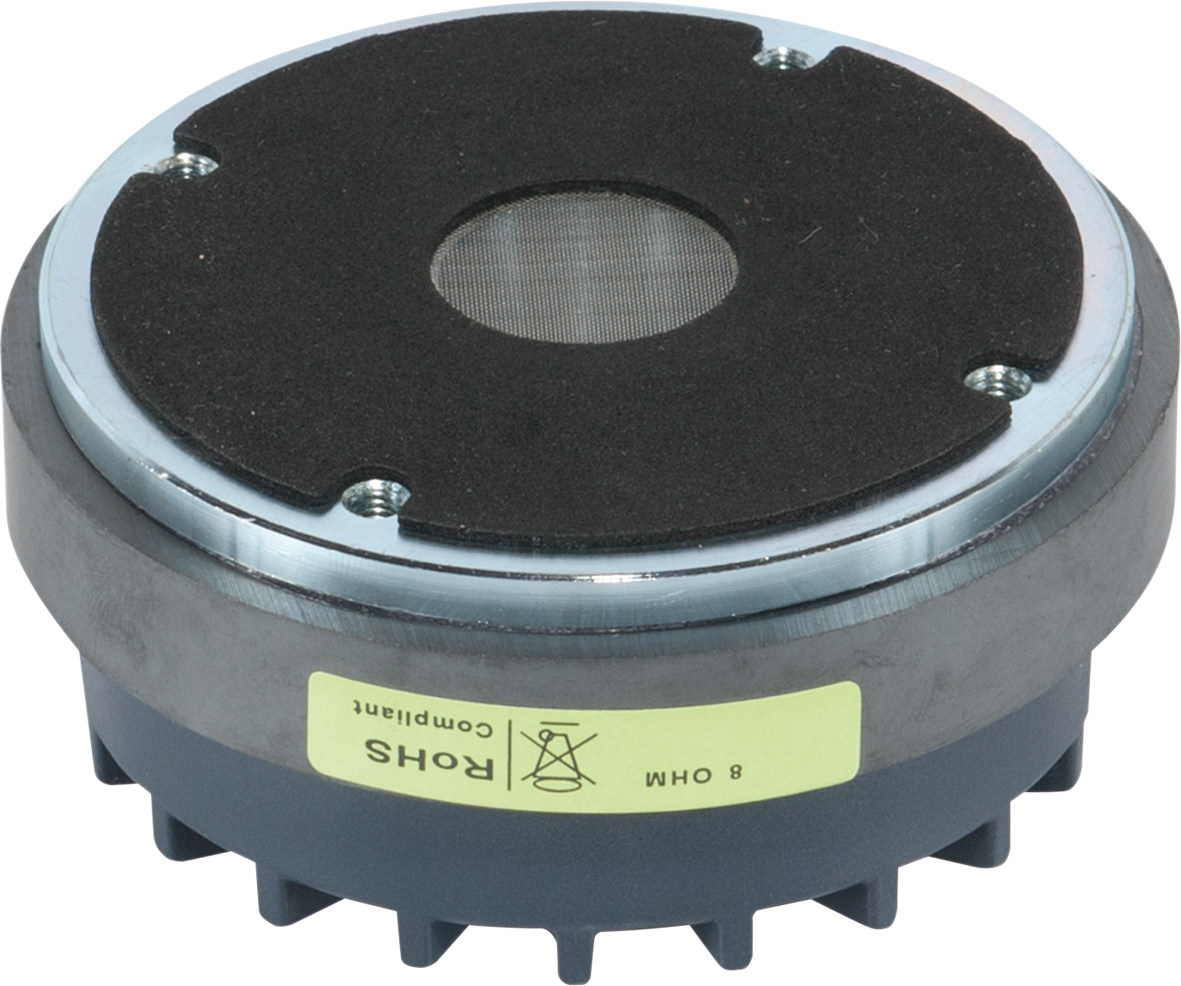

Fane CD.131, 8 Ohm Bolt On Compression Driver

The CD131 is a 1 inch (25.4mm) small format diaphragm compression driver. The 1 inch (25.4mm) exit is an industry standard. The CD-131 combines high BL and a very lightweight diaphragm assembly, producing high output that offers extended bandwidth and a well defined frequency response to 18 kHz. The driver has a rated low frequency response limit of 2 kHz and has a smooth response throughout its bandwidth. The CD131 features an industry standard bolt on mounting system that is ideally matched to commercially available bolt on horns.

• 1” Standard Throat
• 1.375” / 34.4 mm Aluminum Voice Coil
• Titanium diaphragm.
• 30 W (AES).
• Bolt Fixing Hole : 4 x M6 on 76.2 mm / 3” PCD

Features

• Diameter “/ mm 1” / 25.4 mm
• Gross Weight (Packaged) (kg) 0.98
• Gross Weight (kg) 0.98
• Outer Box Length (cm) 9.5
• Outer box quantity 1
• Packaged Depth (cm) 9.5
• Net weight (kg) 0.91
• Gross weight outer carton (kg) 0.98
• Outer Box Width (cm) 9.5
• Packaged Width (cm) 9.5
• Packaged Height (cm) 7.1
• Throat Size ” / mm 1″ / 25.4 mm
• Power (AES) 30
• Packaging Plain Box
• Outer Box Height (cm) 7.1
• Inner box quantity 1
• Product EAN 5060765031331
• Product Dimensions (mm) 90 x 44
• Packaged dimensions (HxWxL mm) 71 x 95 x 95
• Transport dimensions (mm) 71 x 95 x 95
• Item priced per Each
• Warranty Period 1 Year
• Frequency Response (Hz) 2 kHz – 18 kHz
• Impedance (Ohms) 8
• Sensitivity (dB) 106 dB
• Voice Coil Diameter ” / mm 1.375″ / 34.4 mm
