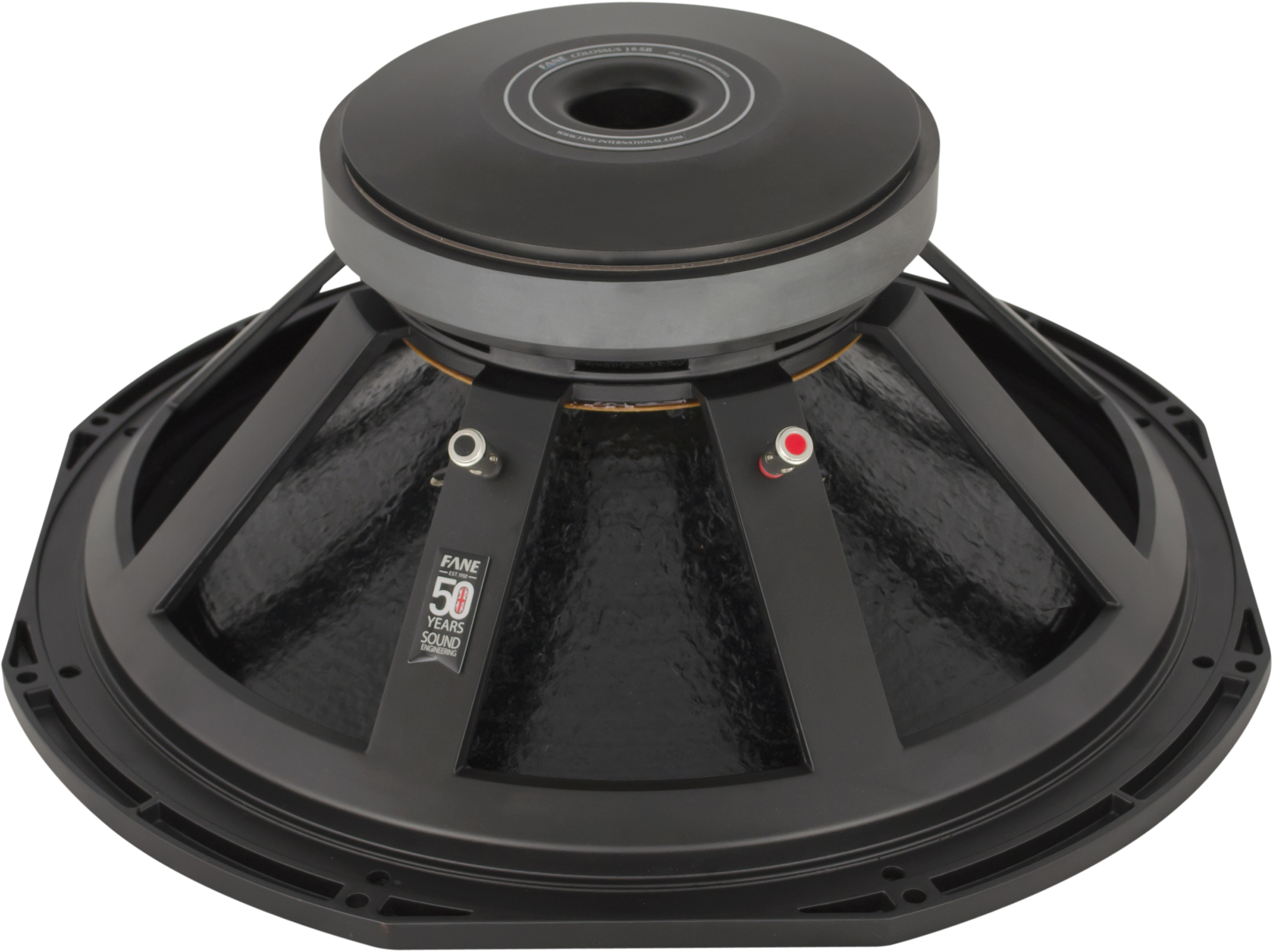

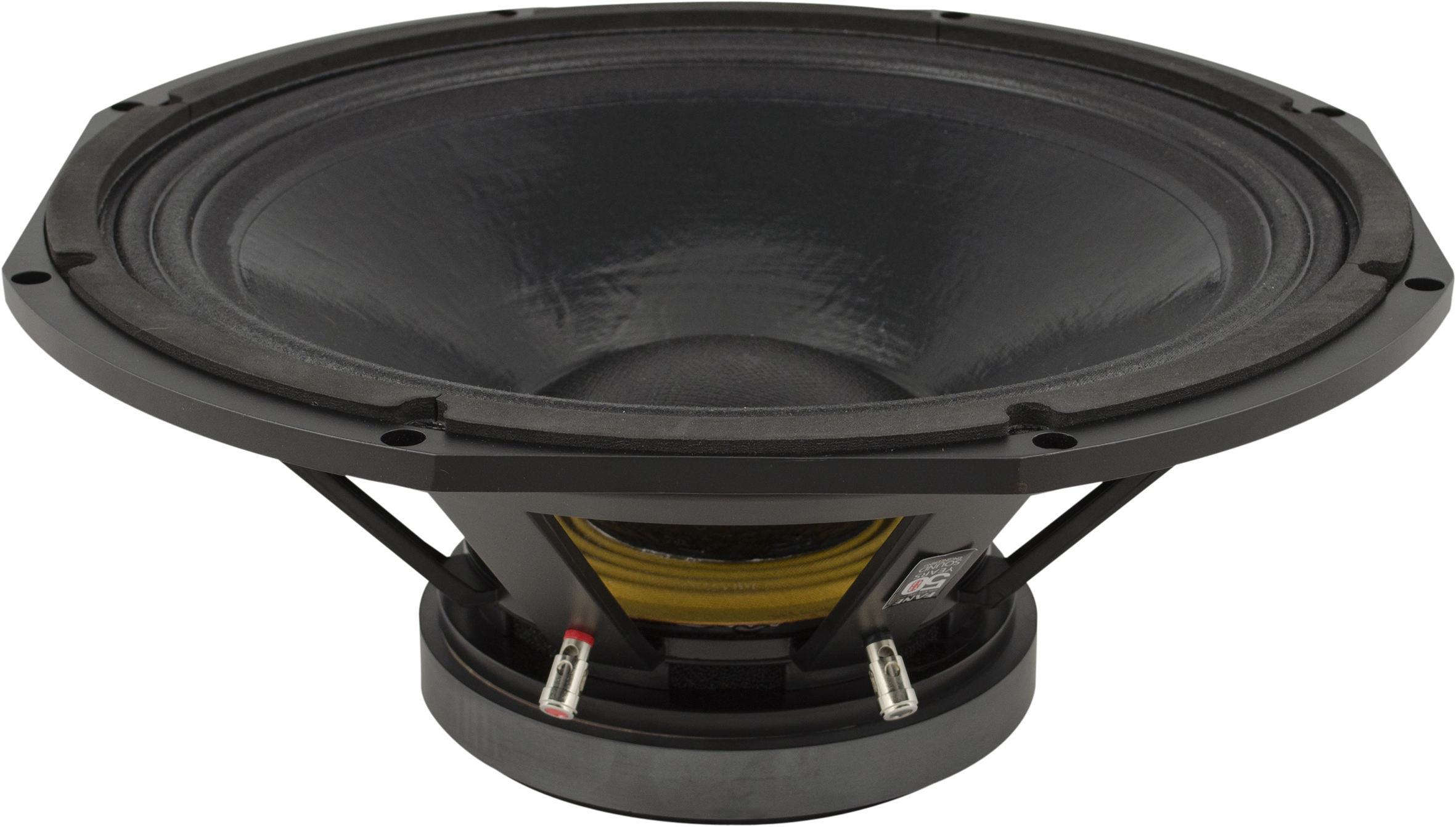

Fane Colossus 18SB, 18″ 8 Ohm Bass Driver

The Colossus 18SB is intended for use as a high output bass driver in multi-way systems. It features a 4 inch ‘sandwich’ inside and outside windings voice coil, immersed in a symmetric magnetic field yielding increased linearity and lower distortion. This, coupled with a large Xmax of 8.25 mm and laminated silicone suspension, ensures tight, punchy bass at high levels of excursion. The cone membrane, manufactured from polycellulose, is much stronger and more durable than conventional paper pulp alternatives. This allows the driver to combine high sensitivity with the structural integrity required to produce undistorted low frequencies at extreme sound pressure levels. The driver handles 1000 Watts (A.E.S.) continuous and can cope with peaks in excess of 4000 Watts. This is due to advanced thermal management in the form of vented diecast chassis and increased motor system venting. These measures effectively remove heat from the voice coil, resulting in extremely low-power compression. The Colossus 18SB exhibits 100 dB sensitivity and can deliver bass down to 35 Hz (-6 dB) in a 200 Litre ported enclosure.

• Fast, accurate bass. Defined, clean and punchy.
• Fibre loaded, UK manufactured cone offering increased strength, durability and performance.
• Delivers bass down to 35 Hz in a 200 Litre ported enclosure.

Features

• Voice Coil Diameter ” / mm 4.0″ / 101.6 mm
• Gross Weight (Packaged) (kg) 13.1
• Diameter “/ mm 18” / 457.2 mm
• Gross Weight (kg) 13.1
• Outer box quantity 1
• Outer Box Length (cm) 48.5
• Packaged Depth (cm) 48.5
• Net weight (kg) 12.51
• Power (AES) 1000w
• Packaging Plain Box
• Outer Box Height (cm) 23
• Inner box quantity 1
• Magnet Weight (oz) 120 oz
• Outer Box Width (cm) 48.5
• Gross weight outer carton (kg) 13.1
• Packaged Height (cm) 23
• Packaged Width (cm) 48.5
• Product EAN 5060765030136
• Product Dimensions (mm) 201 x 485
• Packaged dimensions (HxWxL mm) 230 x 485 x 485
• Transport dimensions (mm) 230 x 485 x 485
• Item priced per Each
• Warranty Period 1 Year
• Diameter (mm) 457.2 mm
• Frequency Response (Hz) 35 Hz – 2.5 kHz
• Impedance (Ohms) 8
• Peak Music Power (W) 4000 W
• Sensitivity (dBV/Pa) 100 dB
