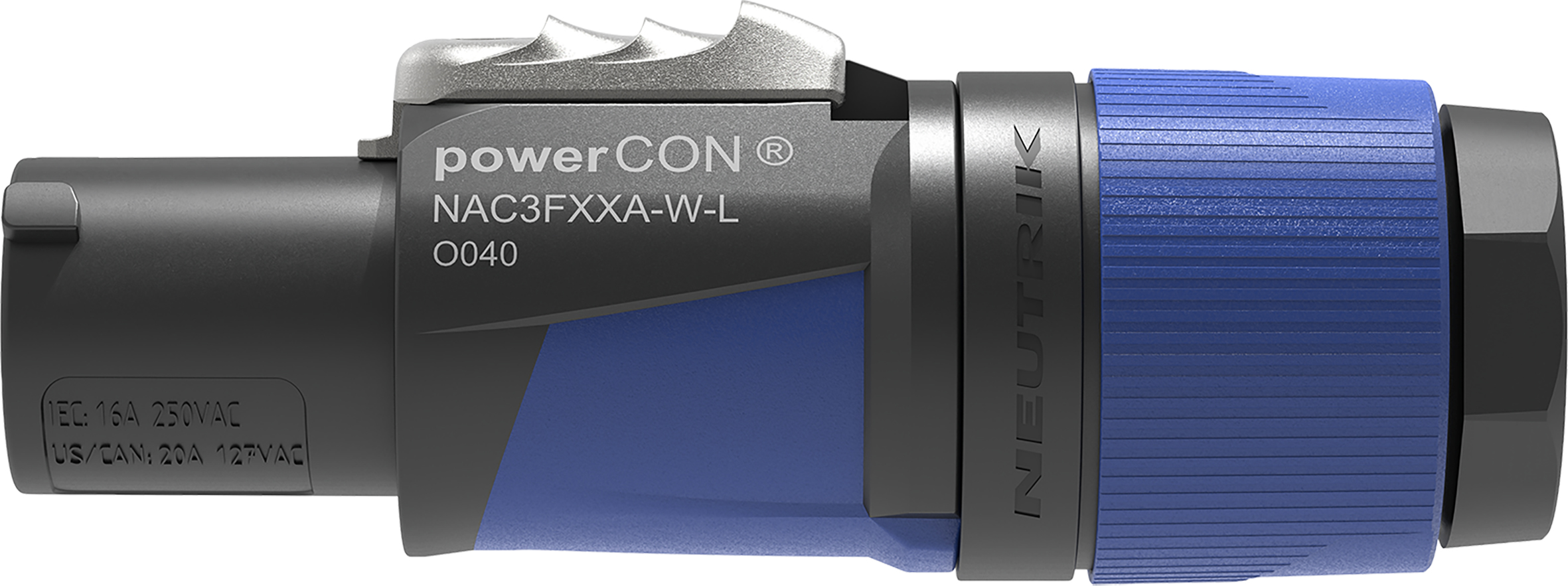

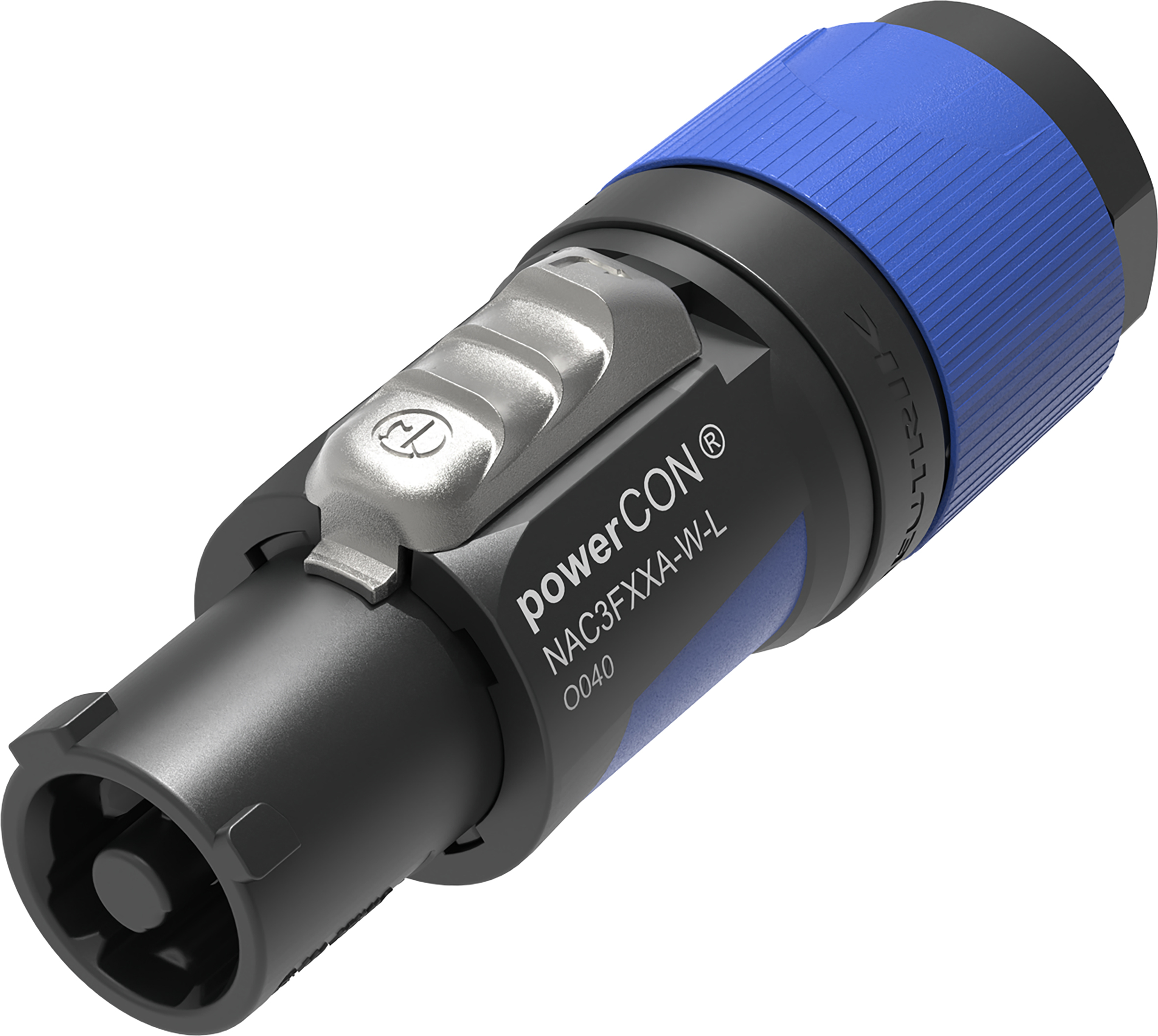

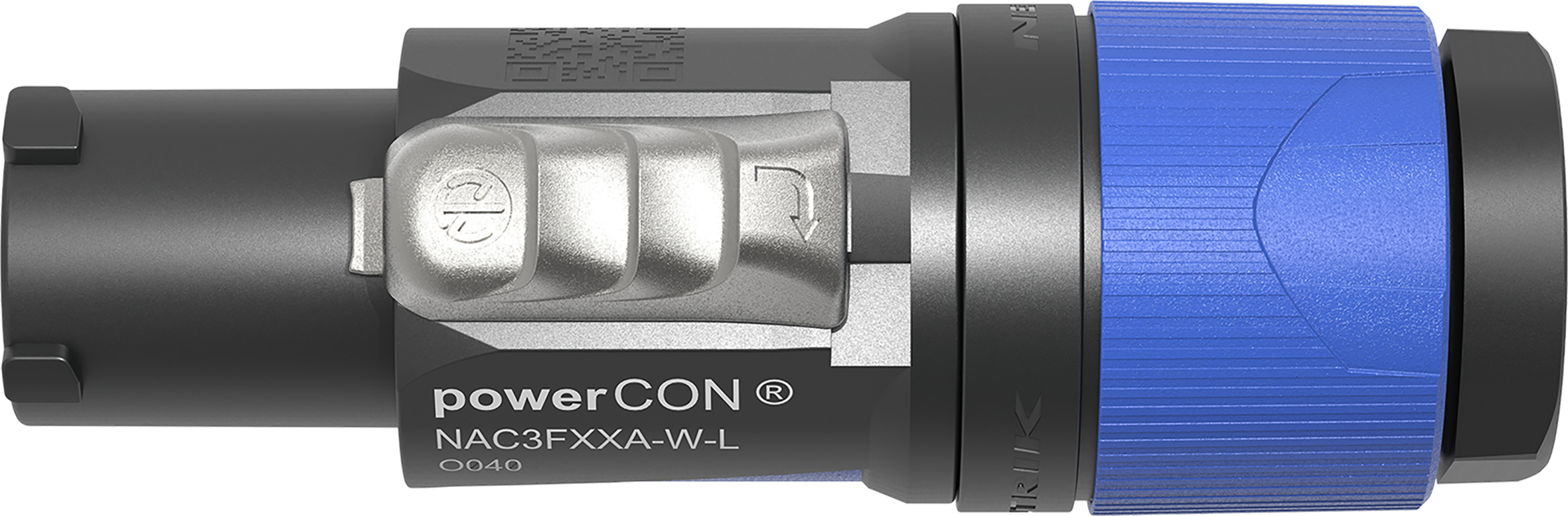

Neutrik NAC3FXXA-W-L POWERCON FXX Blue Power In, Large 10-16 mm cable size

Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 – 16 mm. The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection. (Requires a T8 Torx Driver to tighten the terminals, and a 22mm Spanner to undo the Plug )

• EC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
• Ergonomic design with slip-proof two-component molded housing
• Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
• Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Improved kink protection by two-component bushin

Features

• Outer Box Height (cm) 2.1
• Inner box quantity 1
• Outer Box Width (cm) 12
• Gross weight outer carton (kg) 0.15
• Product EAN 5021196851004
• Wire Size mm 1.5 -2.5
• Packaged Height (cm) 2.1
• Packaged Width (cm) 12
• Packaged Depth (cm) 22.5
• Outer box quantity 1
• Outer Box Length (cm) 22.5
• Gross Weight (kg) 0.15
• Net weight (kg) 0.1
• Gross Weight (Packaged) (kg) 0.15
• Product Dimensions (mm) 82.5 x 26.5
• Packaged dimensions (HxWxL mm) 225 x 120 x 25
• Transport dimensions (mm) 225 x 120 x 25
• Item priced per Each
• Warranty Period 1 Year
• Colour Black / Blue
• Max Cable Diameter (mm) 10-16
• Maximum total current (A) 16 a
• Number of Contacts 3
• Type PowerCON in
