NJD PIR Motion Detecting PIR for Use with LED Tape and Strip 12-24V

The single channel PIR switch will turn on 12-24 V LED lighting when movement is detected. Simply move within 5m and 120° of this product and the LED lights will turn on and stay on for a duration that can be set from 20 seconds up to 5 mins (approximately) after motion is no longer detected. It is ideal for use in the home in cupboards, wardrobes, etc., as well as in a wide variety of commercial venues and locations. Suitable for use with the 12/24V dc Tape Lights.

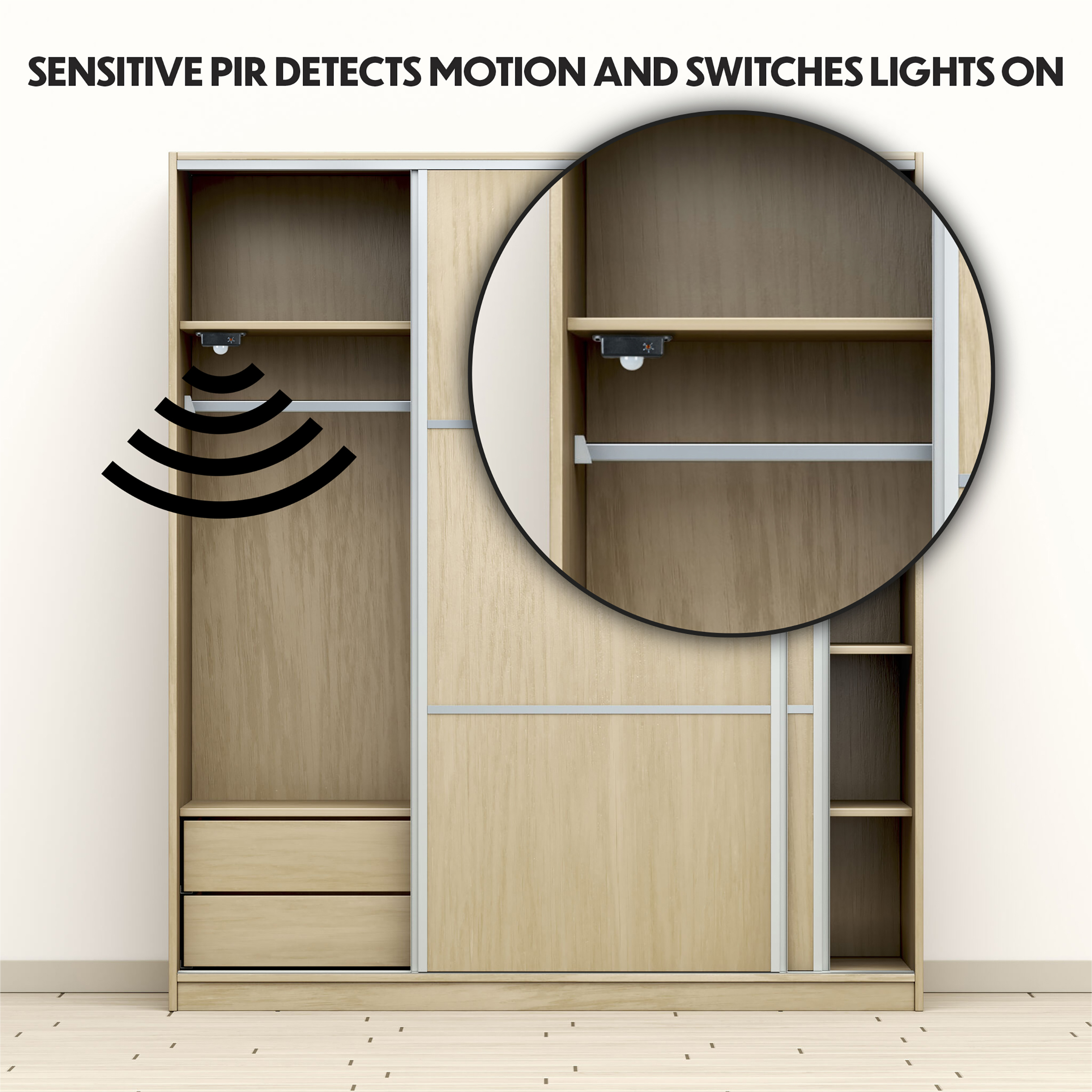

• DETECTS MOTION: Sensitive PIR detects motion and switches lights on
• UNIVERSAL: Works will nearly all LED tapes and strips lights

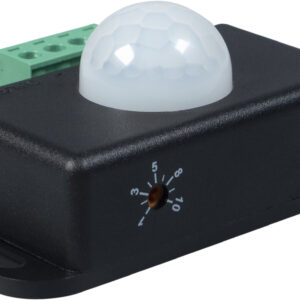

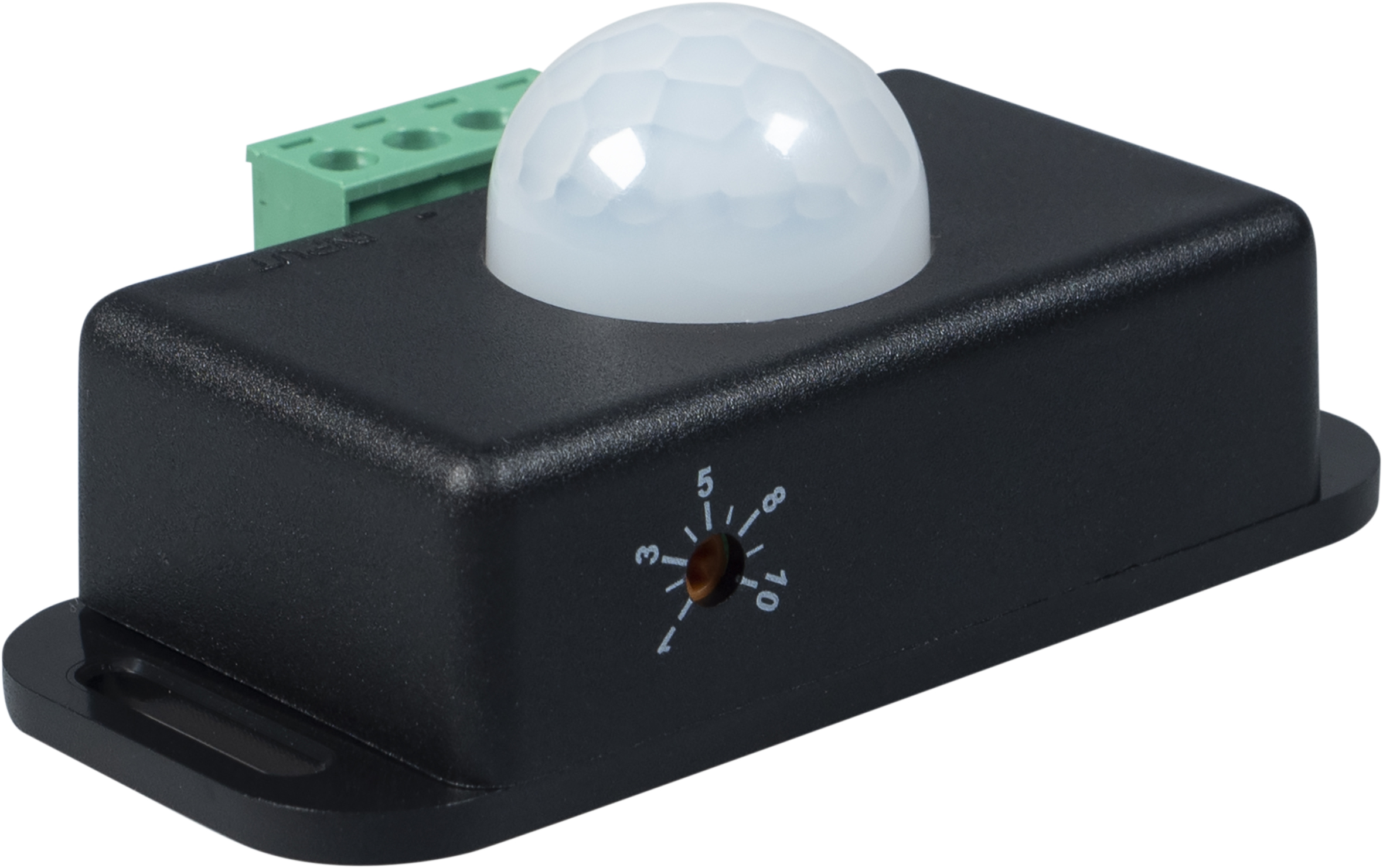

• TIMER CONTROL: Can be set from 20 seconds up to 5 Minutes (approx.) via a screwdriver preset.
• ENERGY SAVING: Stops light being left when they are not required.
• WHERE TO USE: Great for Wardrobes, cupboards, hallways etc.

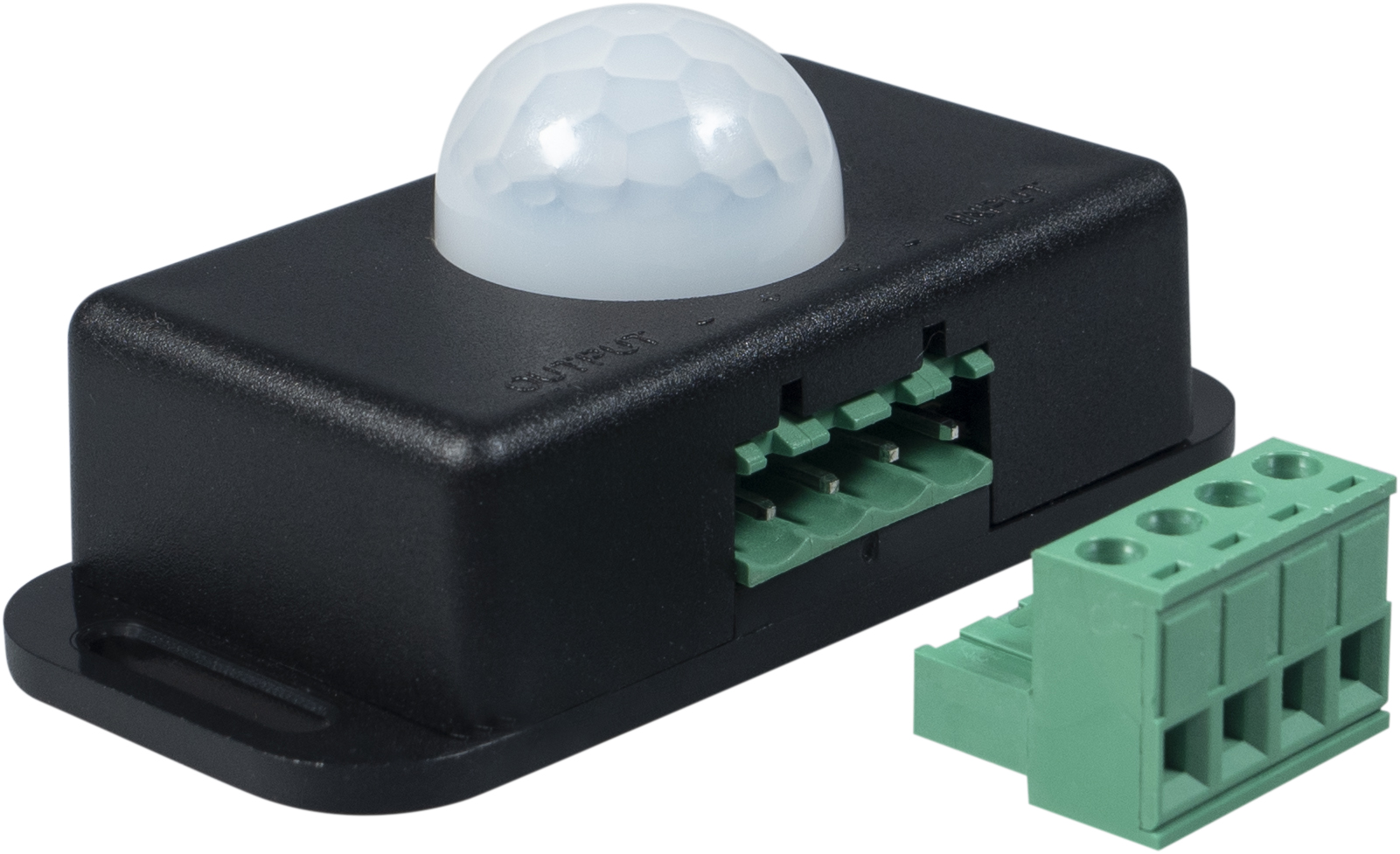

• SIMPLE AND EASY TO INSTALL: Fixes via two mounting points and uses a simple 4 way terminal block for wiring.

Features

• Outer Box Width (cm) 34
• Gross weight outer carton (kg) 10.4
• Packaged Height (cm) 4
• Detection Range (m) <5
• Packaged Width (cm) 5.5
• Outer Box Height (cm) 49.9
• Inner box quantity 1
• Packaging Plain Box
• Packaged Depth (cm) 9
• Outer box quantity 200
• Outer Box Length (cm) 27.2
• Gross Weight (kg) 0.075
• Net weight (kg) 0.055
• Gross Weight (Packaged) (kg) 0.075
• Product EAN 5021196842484
• EAN Number (Outer Box) 5021196842491
• Product Dimensions (mm) 77x44x32.5
• Packaged dimensions (HxWxL mm) 75x50x40
• Transport dimensions (mm) 75x50x40
• Item priced per 1
• Warranty Period 1 Year
• Beam angle (deg) 120
• Colour Black
• Connector Terminal
• Continuous Current (A) <6A
• Control Style PIR
• DC Input (V) 12-24
• Outputs 12-24V
• Voltage (V) 12-24
• Weight (kg) 0.1
