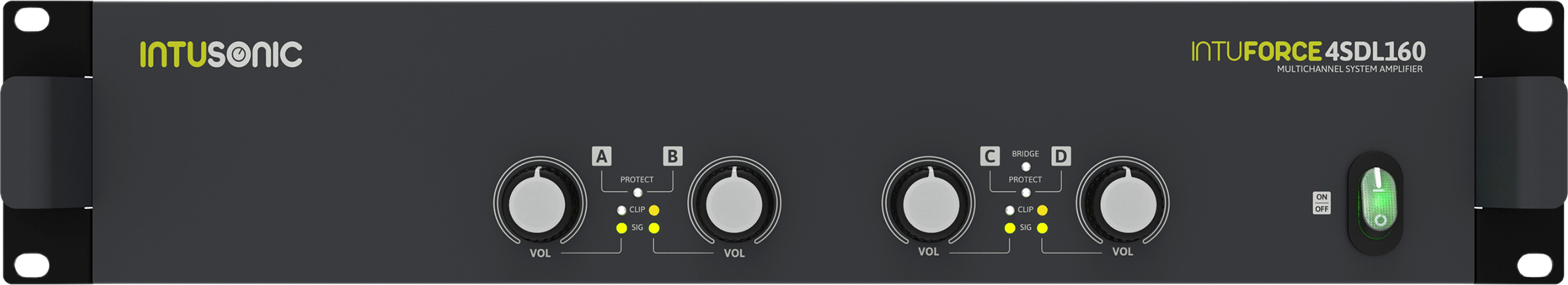

Intusonic IntuForce 4SDL160 4 x 150W-4 Ohm Stereo Amplifier

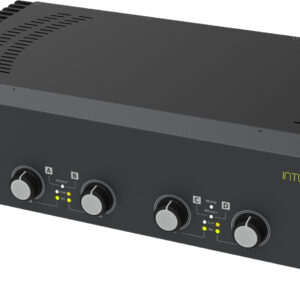

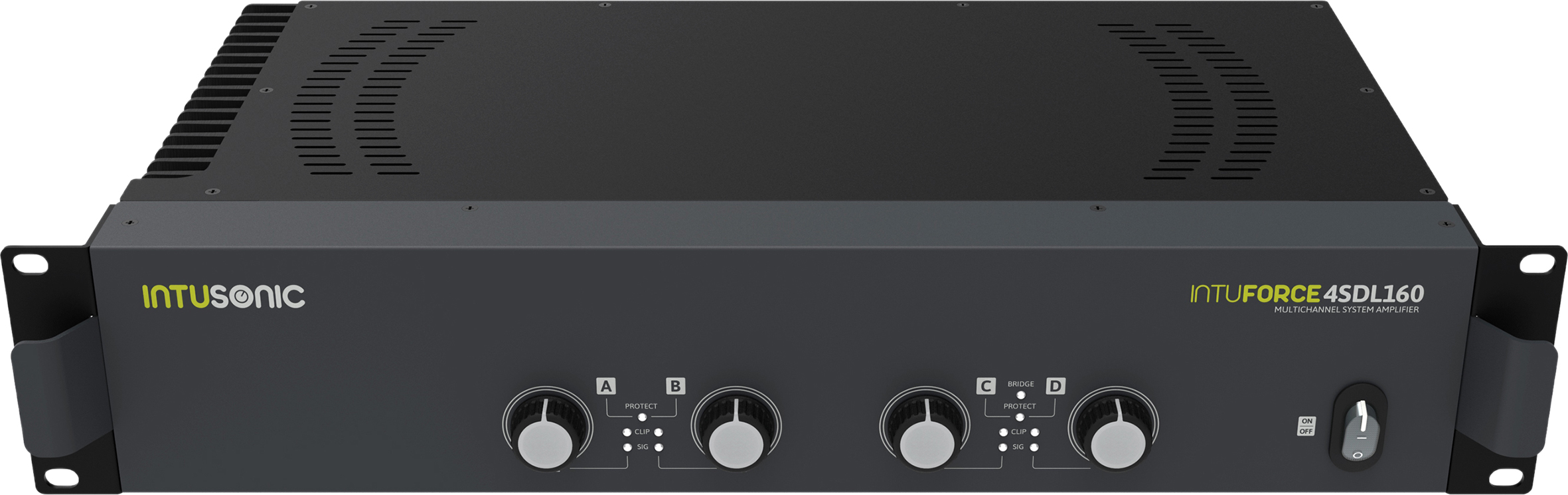

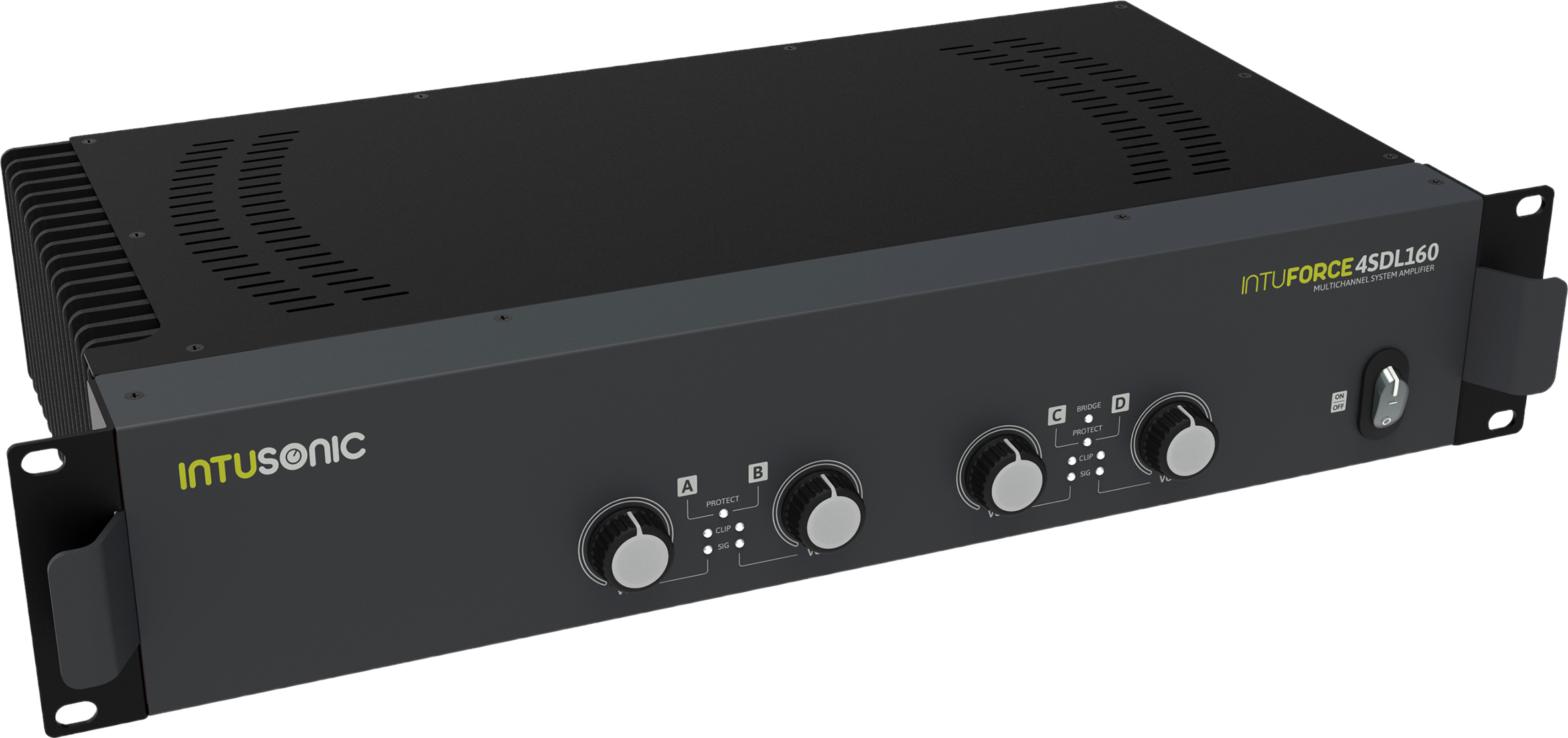

The INTUFORCE 4SDL160 is – despite its simple front panel layout – a very versatile system amplifier for LoZ installed sound systems. Via its comprehensive rear-panel controls, it can be set from a 4-zone amplifier to a dual stereo amplifier or a 2.1 satellite & subwoofer system amplifier. The latter is facilitated by its in-built active crossover with 4 selectable crossover frequencies and its bridging feature for the 3rd and 4th channel. Larger systems are easily set up via the link connectors. Built on cutting edge class D technology, the unit is convection cooled and hence also suitable for applications sensitive to background noise. The conservative switch mode PSU design delivers not only peak power, but also long-term endurance. Best to be combined with 2 or 4 satellite speakers and a subwoofer as one compact system.

• 4 individual amplifier blocks with 150W power @ 4 ohm each.
• Class D topology with switch mode power supply
• Amplifier 3 and 4 bridgeable via rear-panel switch (front LED)

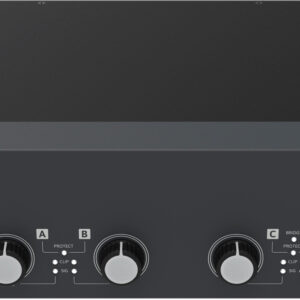

• Front-panel controls for volume and indicators for signal and clip per channel plus protection indicator per channel pair.
• Rear-side switch to disable front-side volume controls.
• Rear-side adjustable maximum volume per channel
• Rear-side switchable 100Hz HPF per channel

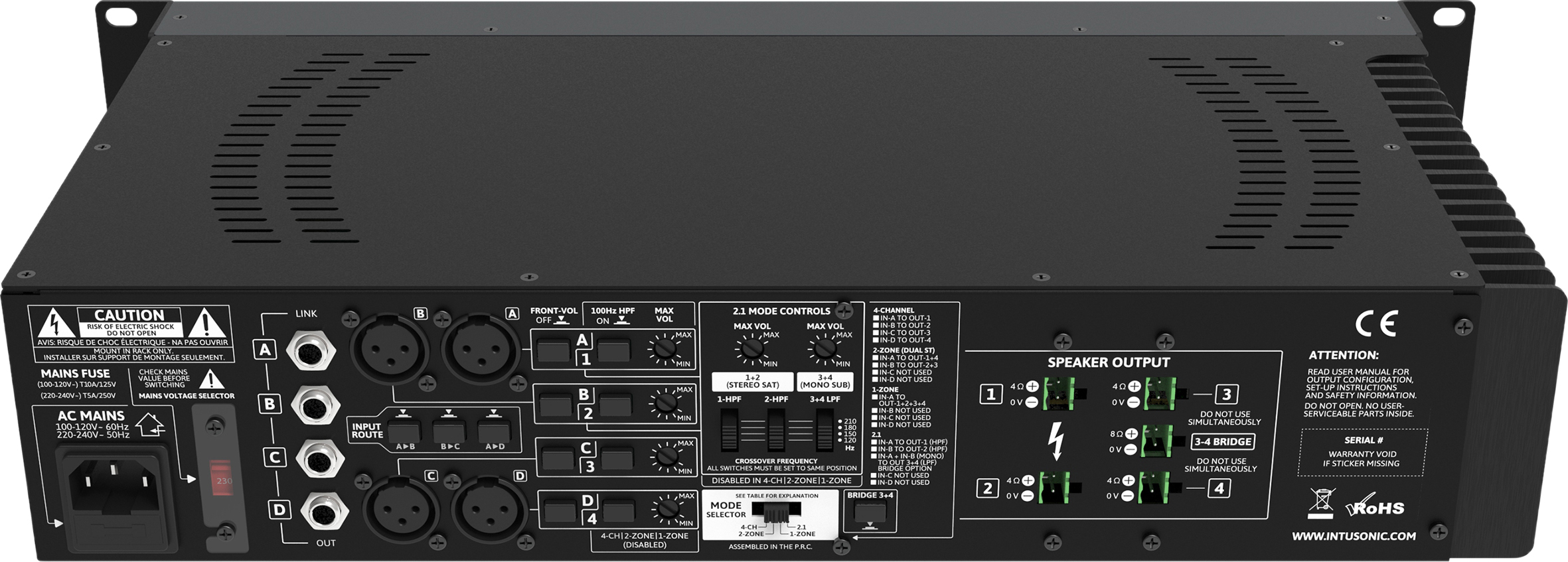

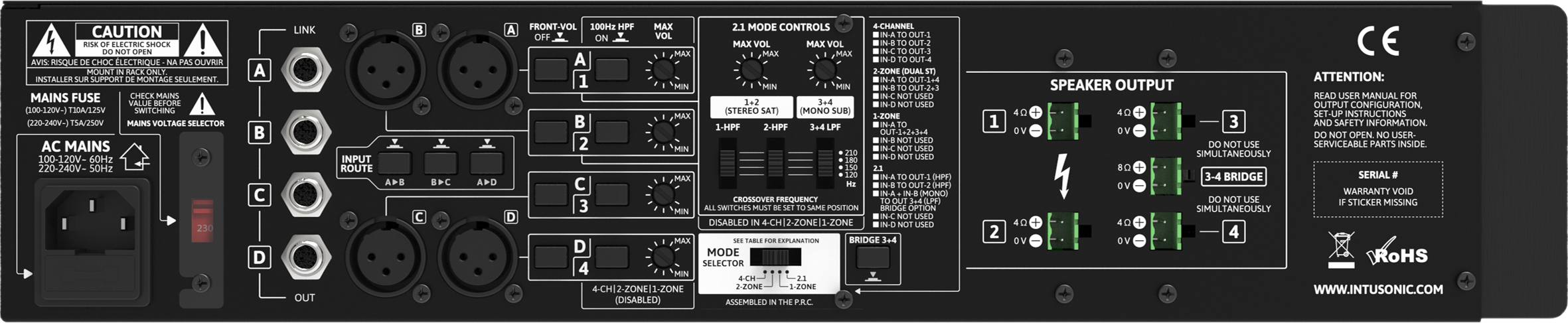

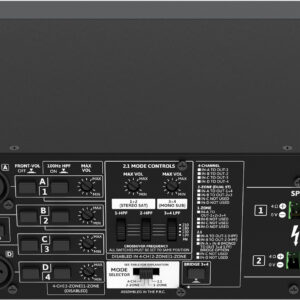

• Input section with balanced XLR connectors and ultra-high CMRR circuitry for long cable runs.
• input signal throughput via balanced TRS Link connectors
• Input signal forwarding switches to set 1-to-4, 2-to-2 and 4-to-1 configurations without external cabling.

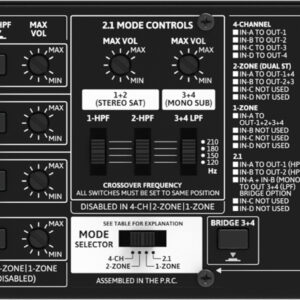

• Mode switch to select 4-Zone, 2-Zone, 1-Zone and 2.1 modes.
• Active crossover with 4 selectable frequencies (120/150/180/ 210Hz) for 2.1 Mode, separate sat/sub volume controls.
• Speaker output via 5.0mm terminal strip connectors
• Noiseless convection cooling without fan
• Full metal case with separately detachable rack ears and handles.

Features

• Outer Box Width (cm) 55.5
• Gross weight outer carton (kg) 16.1
• Product EAN 5060502923127
• Packaged Width (cm) 53.5
• Packaged Height (cm) 12.2
• Outer Box Height (cm) 36
• Inner box quantity 1
• SN Ratio (dB) > 74 dB
• Net weight (kg) 0
• Gross Weight (kg) 5.1
• Outer box quantity 3
• Outer Box Length (cm) 39.5
• Offer to Amazon? no
• Packaged Depth (cm) 33
• Gross Weight (Packaged) (kg) 5.1
• Product Dimensions (mm) 482.6x245x88
• Packaged dimensions (HxWxL mm) 535x330x122
• Transport dimensions (mm) 535x330x122
• Item priced per Each
• Warranty Period 1 year
• Colour Black
• Frequency Response (Hz) 20Hz – 20 kHz
• Model 4SDL160
• Power RMS (W) 4 x 150W/80W
• Power RMS (W) @ 4 Ohms 4 x 150W
• Power RMS (W) @ 8 Ohms 4 x 80W
• THD < 0.12%
• Weight (kg) 4.6
