Wharfedale XR800 XR SERIES 2 x 300w 4 Ohm Amplifier

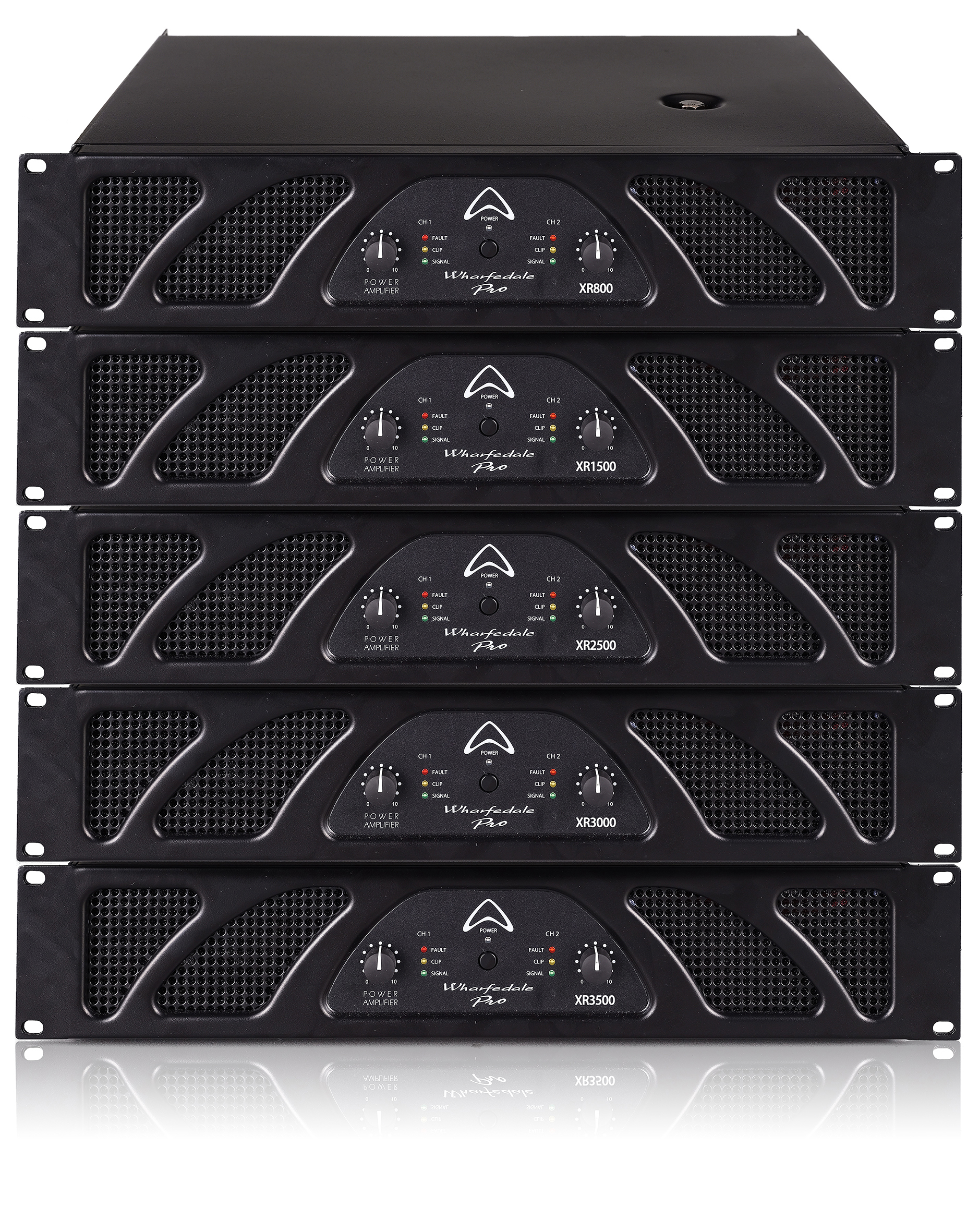

The new XR series of power amps consist of 5 models. The XR3500, XR3000, XR2500, XR1500 and XR800 which deliver 1,000, 700, 500, 330 and 200 watts per channel into 8 Ohm respectively. XR Series is positioned as an affordable amplification line up below the acclaimed CPD series -however practical features have not been overlooked. All models feature XLR thru connectors, making cable management and daisy-chaining easy for installers or when used in flight cases. All models feature full circuitry protection for thermal, over current, DC, output short circuit along with power on/off muting. All models also feature ultra-quiet variable speed fans. Rear panel mode switches allow for selection between Parallel, Stereo and Bridge modes along with input sensitivity switching. Large front air vents and steel construction aid heat dissipation to ensure the long life and reliable performance that comes with any Wharfedale Pro amplifier. Meanwhile, a huge toroidal transformer takes care of any AC power fluctuations. XR amplifiers bring power and performance into a new price category.

• Parallel | Stereo | Bridge modes
• Switchable input sensitivity 0.775V or 1.4V
• Huge toroidal transformers
• Comprehensive protection circuitry
• All steel construction
• XLR Link outputs
• 8 Ohm 2 x 200 Watts
• 4 Ohm 2 x 300 Watts
• 8 Ohm Bridged 1 x 600 Watts
• Class AB

Features

• Outer Box Height (cm) 8.9
• Inner box quantity 1
• Outer Box Width (cm) 31.5
• Gross weight outer carton (kg) 15.1
• Packaged Width (cm) 31.5
• Packaged Height (cm) 8.9
• Gross Weight (Packaged) (kg) 15.1
• Net weight (kg) 12
• Outer box quantity 1
• Outer Box Length (cm) 48.2
• Gross Weight (kg) 15.1
• Packaged Depth (cm) 48.2
• Product EAN 5025941198376
• Product Dimensions (mm) 482 mm x 88 mm x 325 mm
• Transport dimensions (mm) 482x315x89
• Item priced per Each
• Warranty Period 3 Year
• Frequency Response (Hz) 20Hz – 20kHz
• Inputs 2 x XLR & 2 x XLR link
• Model XR800
• Outputs 2 x NL4 (speakON compatible)
• Power Bridge (W) @ 8 Ohms 600 W
• Power RMS (W) @ 4 Ohms 200 W x 200 W
• Power RMS (W) @ 8 Ohms 300 W x 300 W
• Weight (kg) 12
