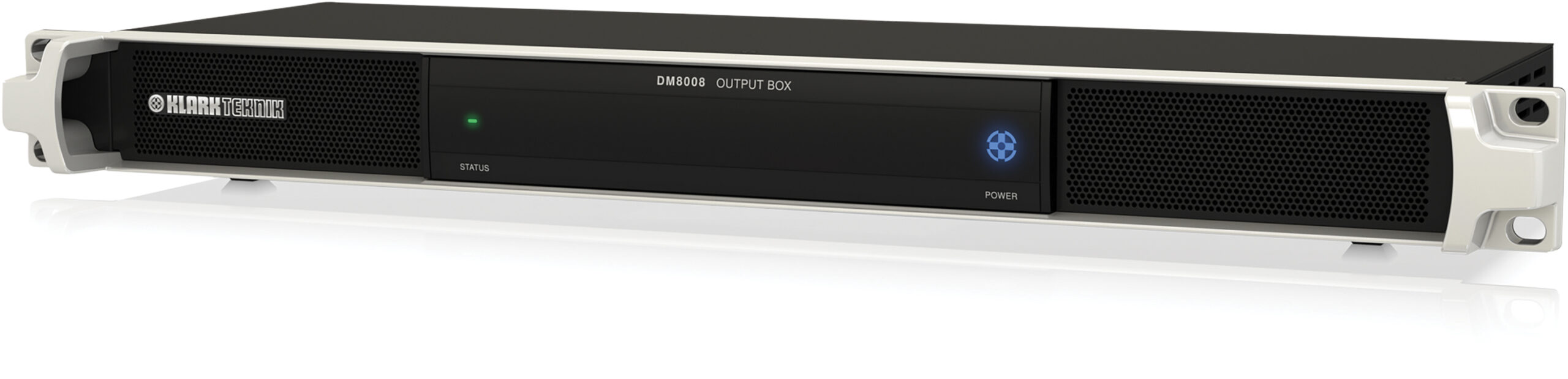

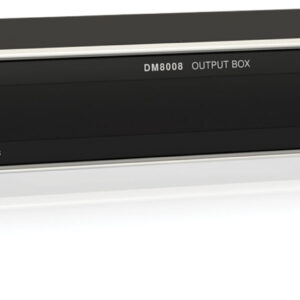

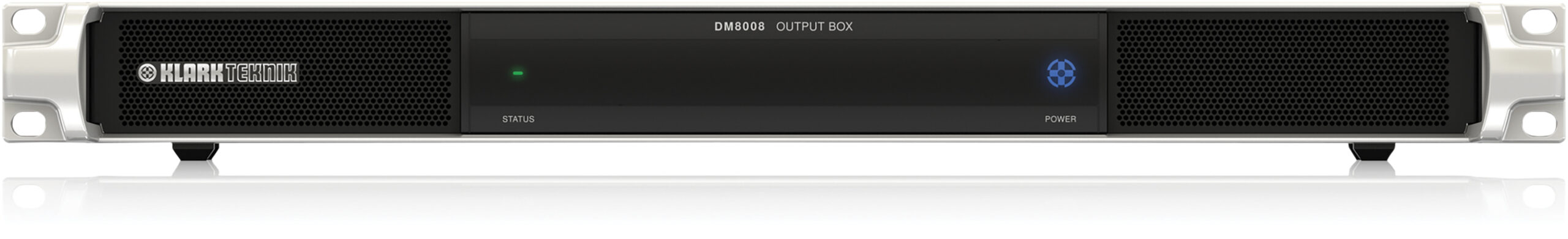

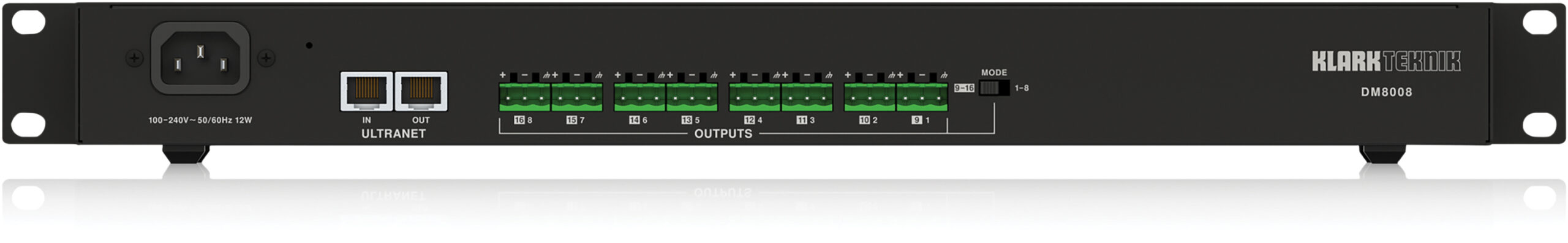

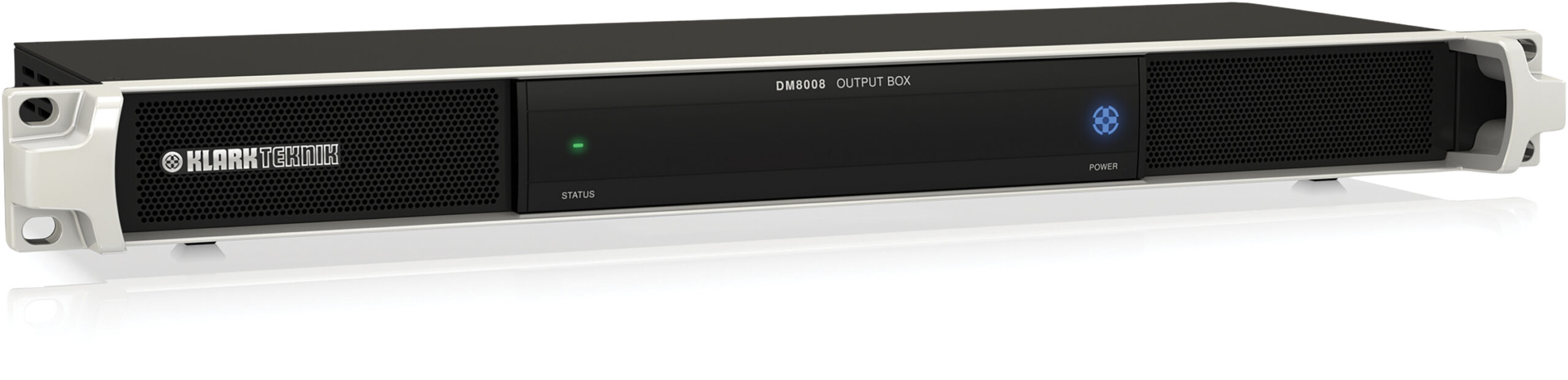

Digital music and sound distribution requires specialised tools to ensure the desired content arrives at the proper zone(s) in all its pristine sound quality. The DM8008 Channel Output Box, a rugged 19″ 1U rack-mount chassis designed specifically for the ULTRANET environment, provides 8 channels of analogue output making it ideal for use in hotels, houses of worship, casinos and a myriad of other professional audio applications. Up to 7 DM8008 s may be connected in series on a single ULTRANET cable for the ultimate in signal routing versatility. DM8008 utilises our proprietary ULTRANET networking, which allows users to transmit up to 16 independent channels of 24-bit audio via ULTRANET-enabled devices over CAT5 cabling with RJ45 connections. The digital signal is converted internally to analogue by the DM8008 s high quality 24-bit D/A converters, which offer a 48 kHz sample rate. Outputs are provided in the form of standard balanced analogue Euro block connectors. A convenient switch on the rear panel allows users to select between channels 1 – 8, or channels 9 – 16.Designed for shelf mounting or installation in conventional 19″ rack systems, DM8008 s chassis houses an auto-ranging universal switch-mode power supply (100 – 240V).
- 8 channels of analogue outputs over ULTRANET

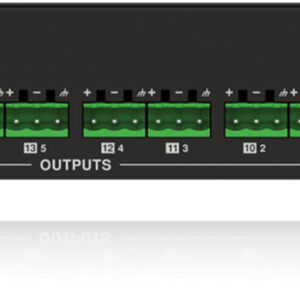

- Standard Euroblock connectors for analogue audio connections
- High quality 24-bit D/A converters with 48 kHz sample rate
- Rugged 1U rackmount chassis for ease of installation
- Auto-ranging universal switch-mode power supply
Features
- Outer Box Width (cm) 49.5
- Outer Box Height (cm) 39
- Outer Box Length (cm) 10
- Gross Weight (kg) 3
- Frequency Response (Hz) 20 Hz to 20 kHz (±0.4 dB, input to output @ +4 dBu)
- Packaged Depth (cm) 10
- Transport dimensions (mm) 495x100x390
- Packaged dimensions (HxWxL mm) 100x495x390
- Net weight (kg) 2
- Gross Weight (Packaged) (kg) 3
- Number of Channels 8
- Outer box (HxWxL mm) 0x0x0
- Inner box quantity 0
- Voltage 100-240 V ~
- Item priced per 1
- Packaging Retail Box
- Power consumption (W) 12
- Product Dimensions (mm) 49x483x165
- Product EAN 4033653071314
- Gross weight outer carton (kg) 0
- Model DM8008
- Packaged Width (cm) 49.5
- Packaged Height (cm) 39
- Supplier Ref. 000-DC604-00010
- Offer to Amazon? No
- Outer box quantity 1
| Weight | 3 kg |
|---|
