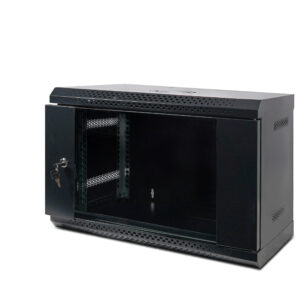

6U 19″ Wall Rack 300mm Deep Welded / Assembled

The compact design of the Eagle 19″ Wall Mounting Cabinets makes it ideal for smaller networks and work groups. It has a tempered removable / reversible glass front door and is made of high-quality SPCC- cold rolled welded steel frame steel. The cabinet has adjustable front and rear 19″ mounting profiles and features ventilation slots top and bottom.The cabinet framework is finished in a high quality attractive black powder coating. The cabinet meets ANSI/EAI RS-310-D, DIN-41491, PAIT1, IEC41494, PART7, GB/T3047.2-92 standards. Compatible with 19″ international standard. Metric standards and ETSI standards. A full range of accessories are available to complement our Eagle network/data cabinets.

• Supplied fully assembled.

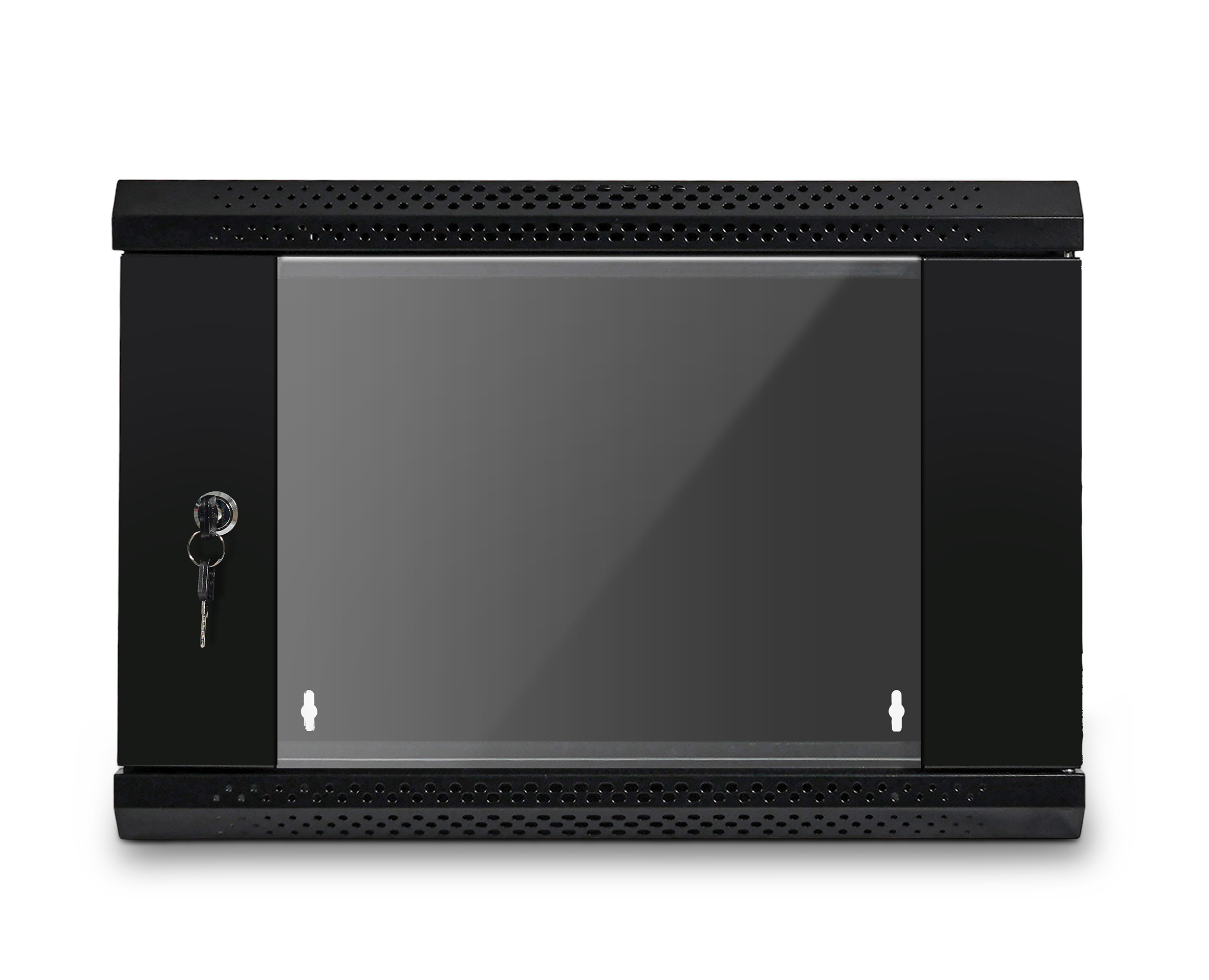

• Removable lockable reversible tempered glass door.

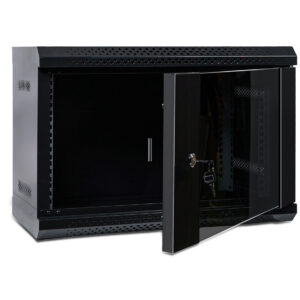

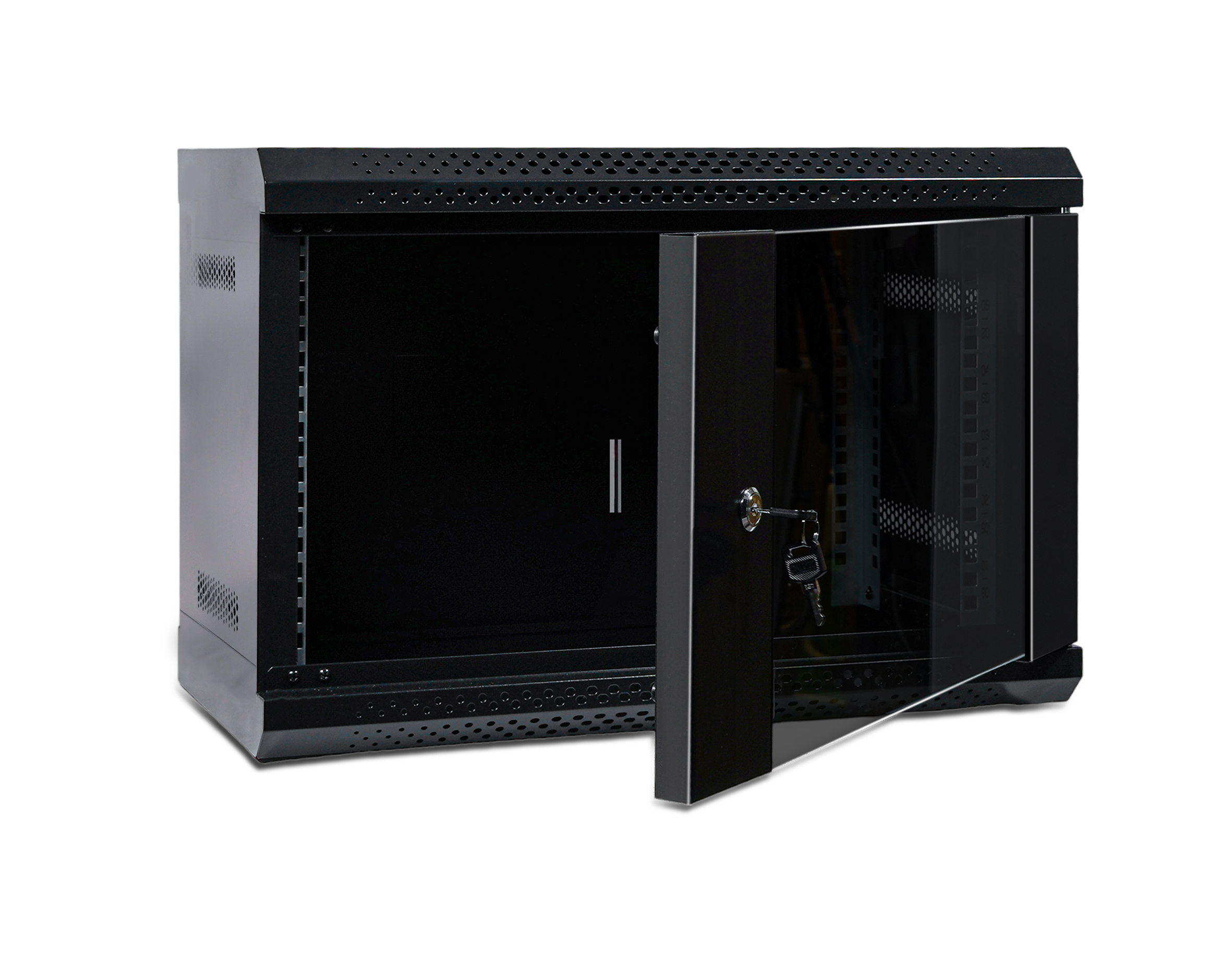

• Front door opens to 180 degrees for better access.
• Ideal for housing smaller networks.
• 19-inch standard spacing
• Depth adjustable heavy-duty steel mounting profiles.
• Knock-out hole for cables on both the top and bottom and real panel.
• Loading Capacity 60KG
• SPCC Cold Rolled Steel Thickness:1.5mm-1.0mm
• Black Powder coating
• Fan Mounting Holes

Features

• Packaged Width (cm) 63
• Packaged Height (cm) 40
• Gross weight outer carton (kg) 12.2
• Amazon Asin B0D54MLXPD
• Product EAN 5021196861287
• Outer Box Width (cm) 63
• Outer Box Height (cm) 40
• Inner box quantity 1
• Outer box quantity 1
• Outer Box Length (cm) 33
• Gross Weight (kg) 12.2
• Packaged Depth (cm) 33
• Net weight (kg) 11.2
• Gross Weight (Packaged) (kg) 12.2
• Product Dimensions (mm) 600 x 300 x 280
• Packaged dimensions (HxWxL mm) 630 x 330 x 310
• Transport dimensions (mm) 630 x 330 x 310
• Item priced per Each
• Warranty Period 1 Year
• Colour Black
• Impedance (Ohms) 600 x 300 x 280
• Material Steel
• Rack Size 6u
• Type Welded Steel
