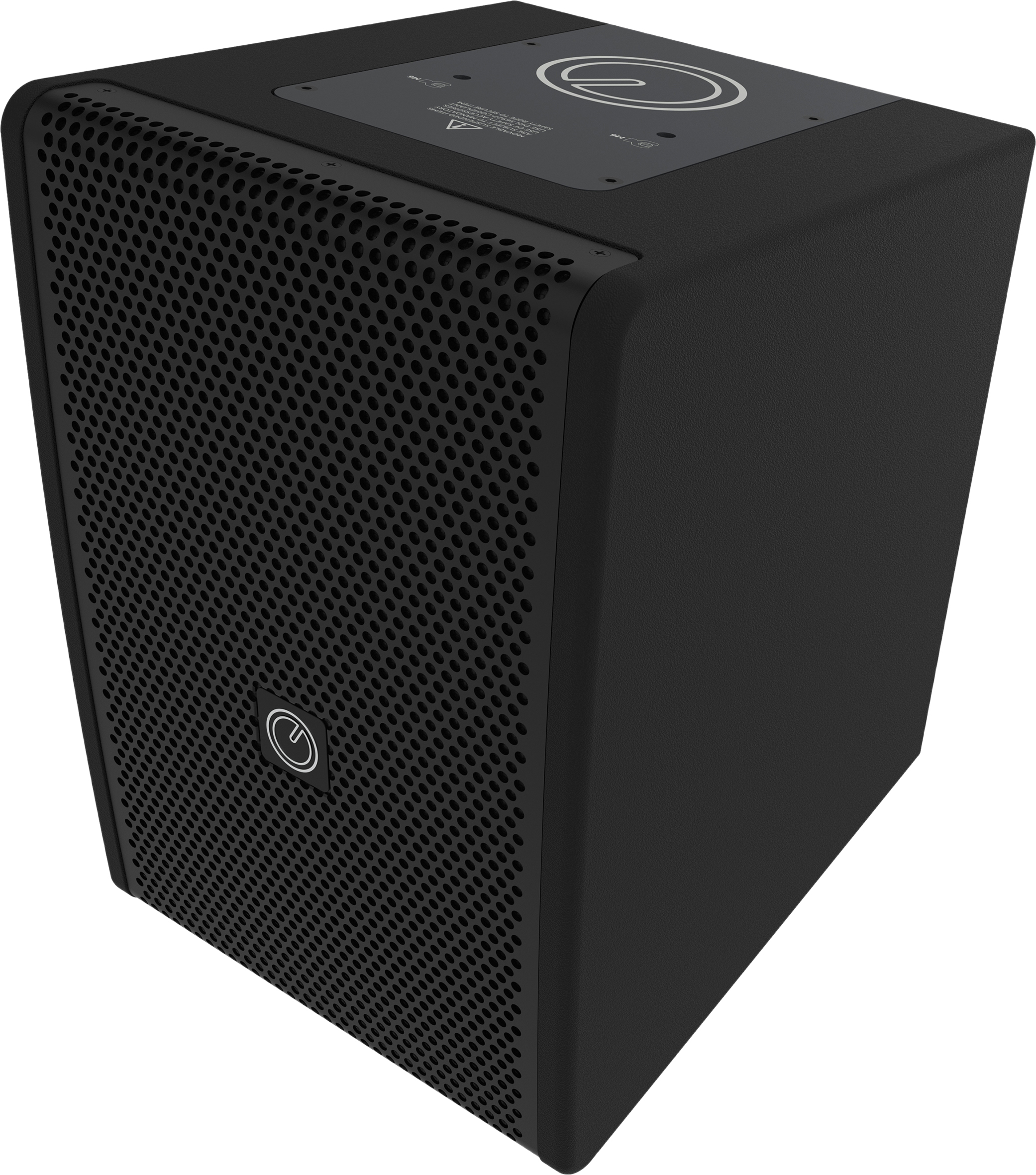

Intusonic IntuCab 6FP100T-B / 6.5” – 8 ohm Speaker

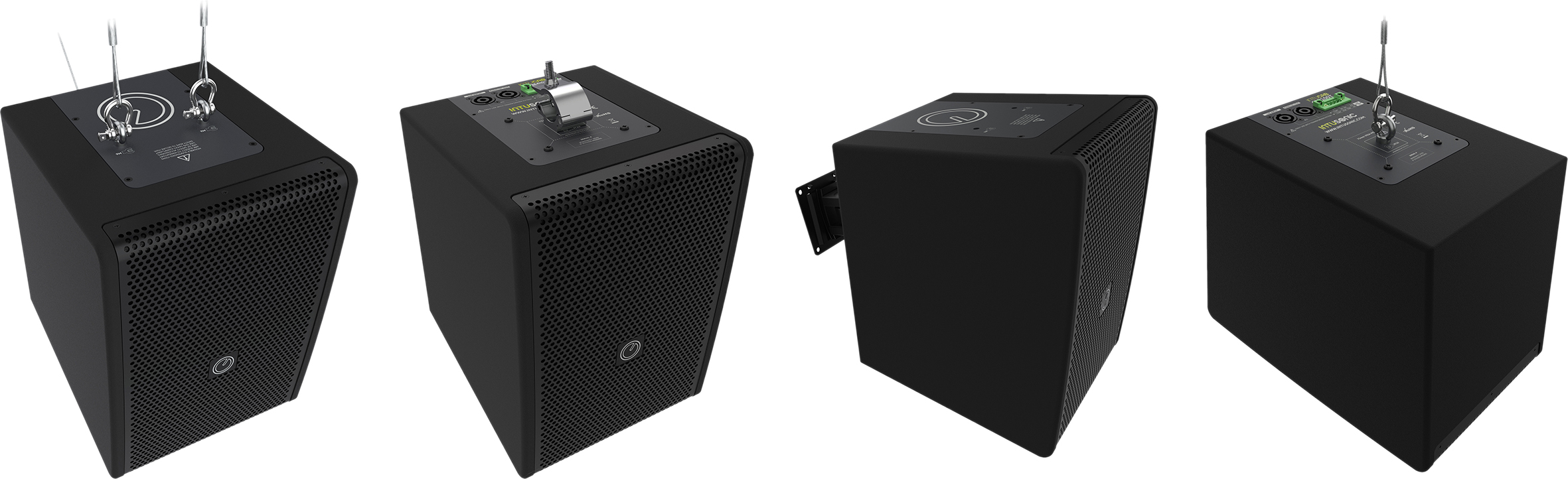

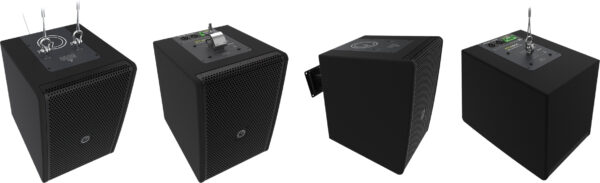

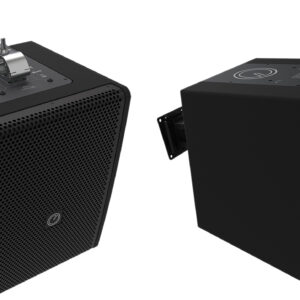

The INTUCAB 6FP100T is the most universal choice for audio systems requiring a small footprint, without sacrifice to sound quality and SPL. The multitude of connections (Speakon-compatible and 5mm terminal strip), as well as the available input transformer option for 100V systems, contribute further to its versatility. Mounting options include VESA, M6 and M10 mounting points, plus the (patent-pending) L-shaped reversible rear panel allowing for suspended mounting, truss mounting and bracket mounting. Available in black and white structural paint finish. Add the INTUCAB 8SM300T Subwoofer for extended low frequency performance.

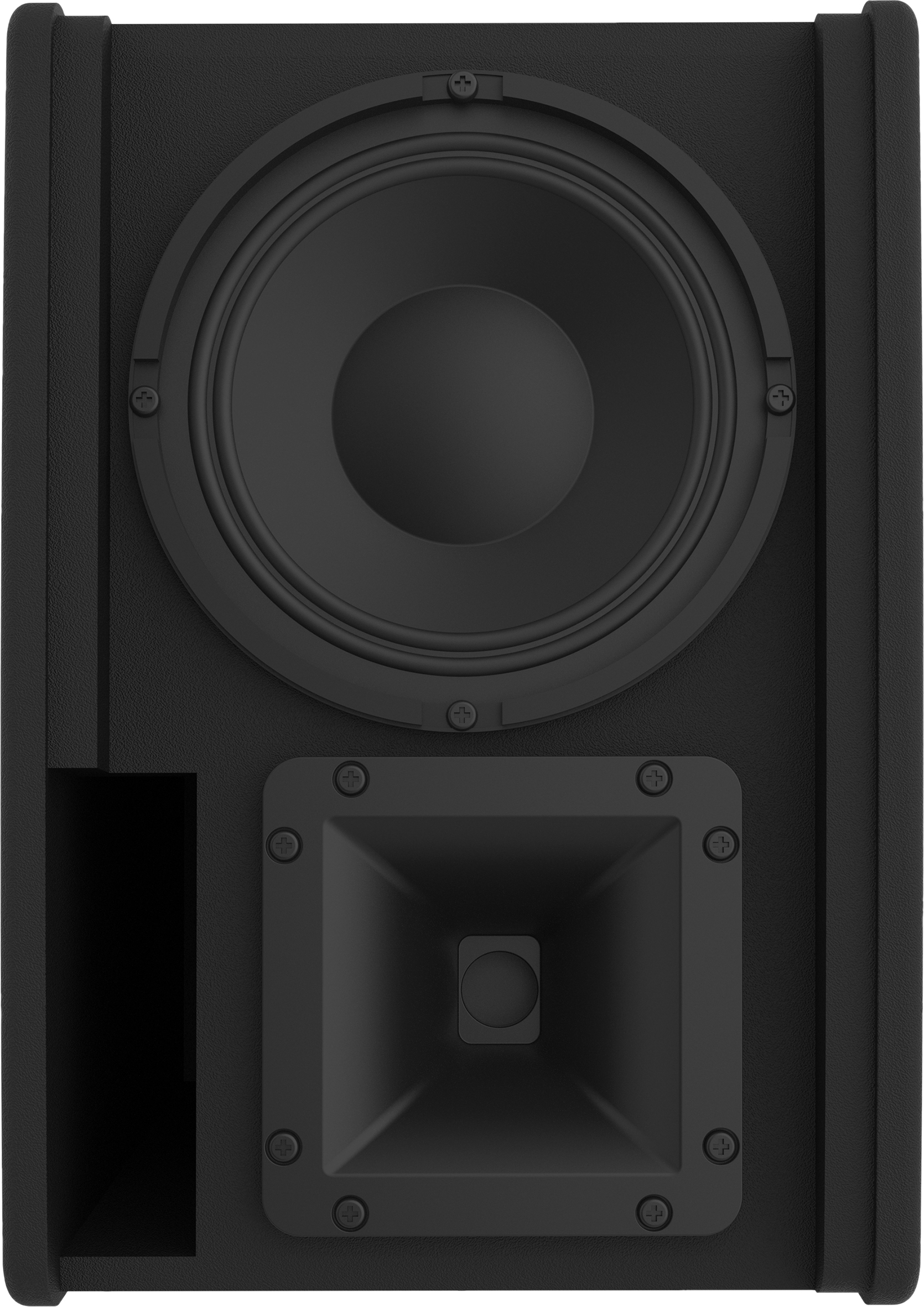

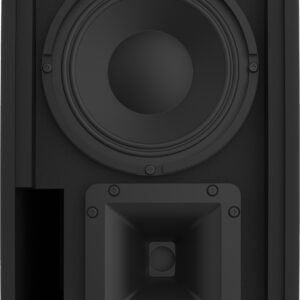

• 6.5’’ LF driver, 80W AES power handling
• 1’’ HF compression driver & wide-dispersion HF horn
• Horn 90 degree rotatable for horizontal or vertical use
• Advanced passive crossover for best sound quality

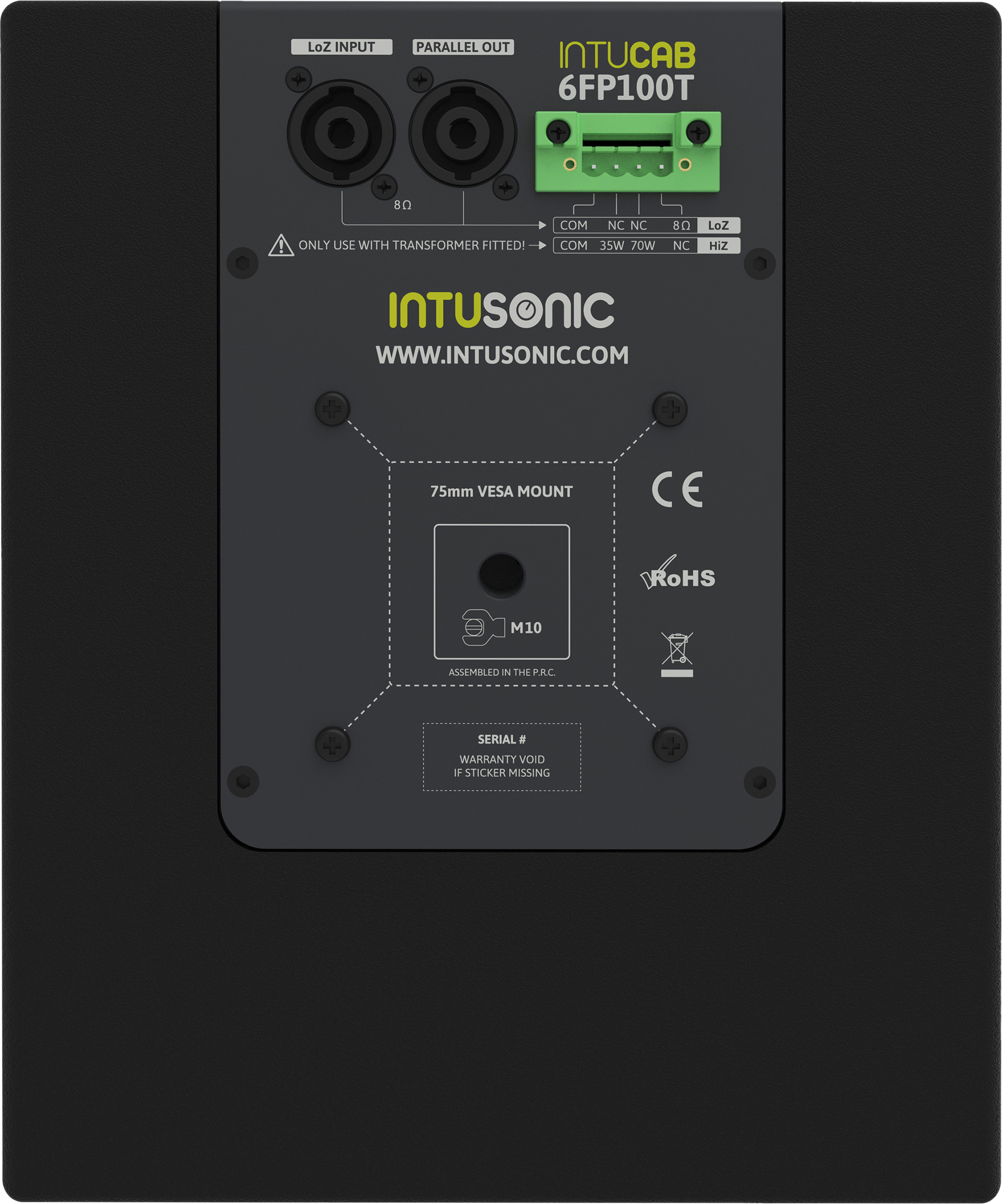

• Dual parallel Speakon-compatible connectors for LoZ
• 5.0mm terminal strip connector for LoZ and HiZ

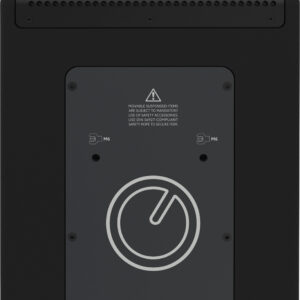

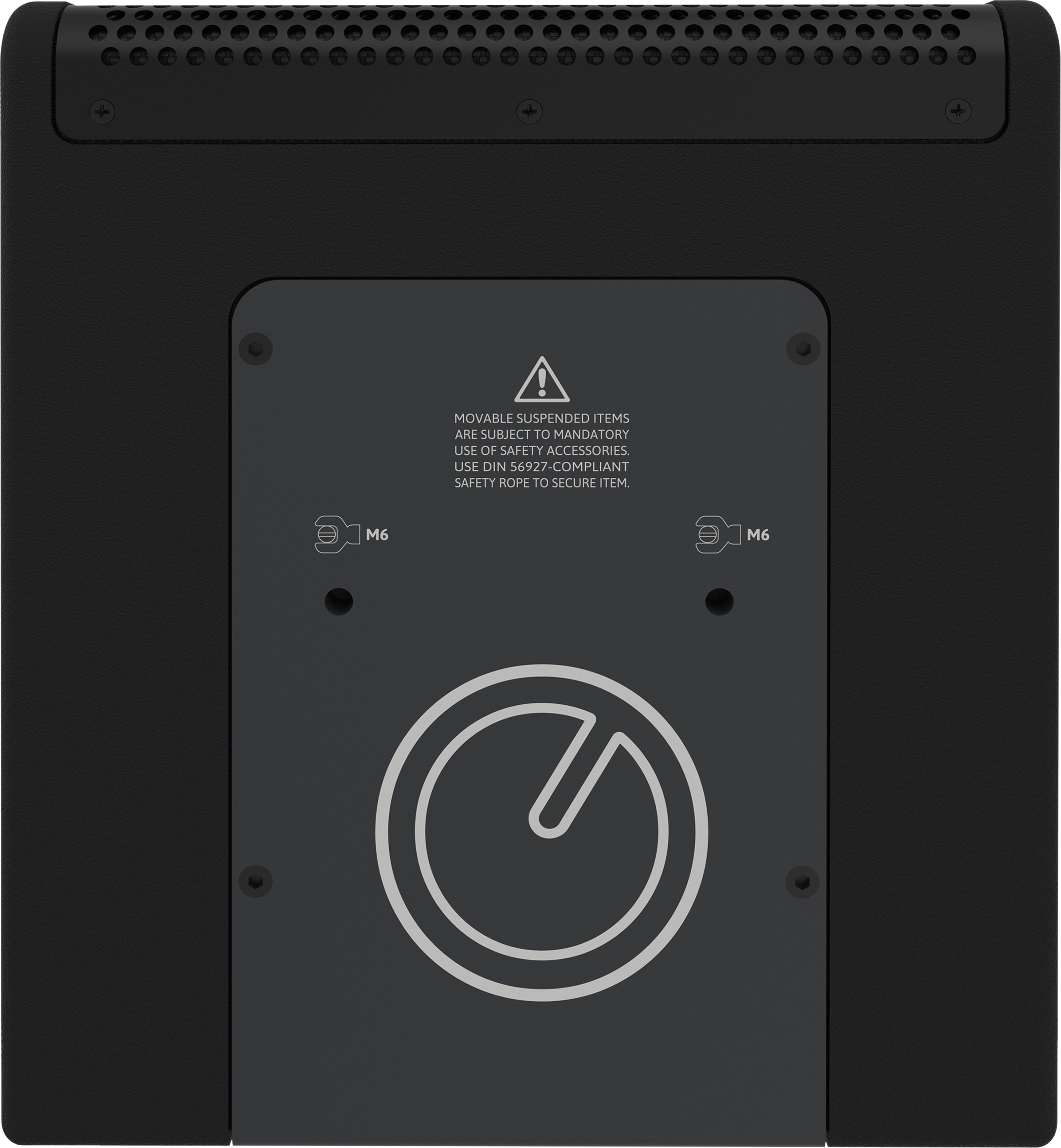

• Reversible L-shaped rear panel (patent pending) with 75mm VESA/1xM10/3xM6 mounting points
• 12mm MDF construction
• Structured scratch-resistant paint, black or white

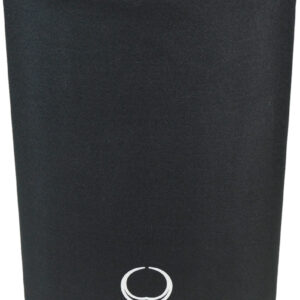

• Rugged steel front grille with cosmetic rear-side foam
• 100V transformer kit option (UTK60 – sold separately)
• CE/ROHS compliant

Features

• Outer Box Width (cm) 66.5
• Gross weight outer carton (kg) 9.175
• Packaged Width (cm) 37
• Packaged Height (cm) 30
• Power (AES) 80w
• Outer Box Height (cm) 32.5
• Inner box quantity 1
• Gross Weight (Packaged) (kg) 8.75
• Gross Weight (kg) 8.75
• Outer box quantity 2
• Outer Box Length (cm) 38.5
• Offer to Amazon? no
• Packaged Depth (cm) 32
• Net weight (kg) 8.75
• Product Dimensions (mm) 225 (W)x252(D)x325(H)
• Packaged dimensions (HxWxL mm) 370x320x300
• Transport dimensions (mm) 370x320x300
• Item priced per Each
• Outer box (HxWxL mm) 665x385x325
• Warranty Period 1 Year
• Bass Driver (mm) 162.5 (6.5’’)
• Colour Black
• Compression Driver (mm) 25 (1’’)
• Frequency Response (Hz) 75Hz-16.5kHz
• Impedance (Ohms) 8
• Maximum SPL 116.5 dB
• Sensitivity (dBV/Pa) 92 (1w/1m)
• SPL (dB @ 1 m) 116.5
• Weight (kg) 8.15
