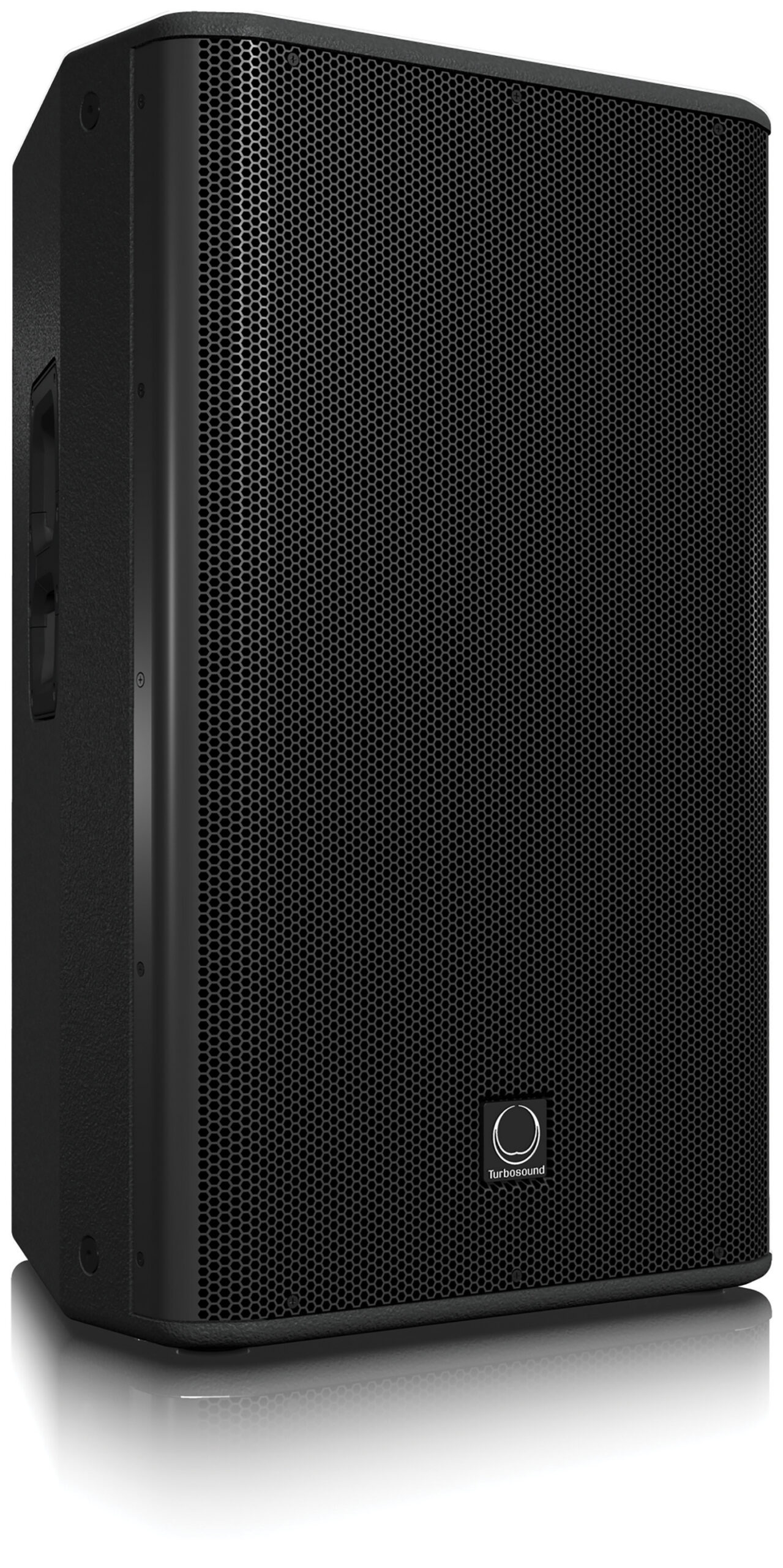

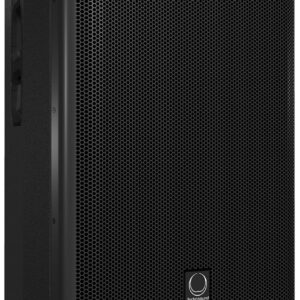

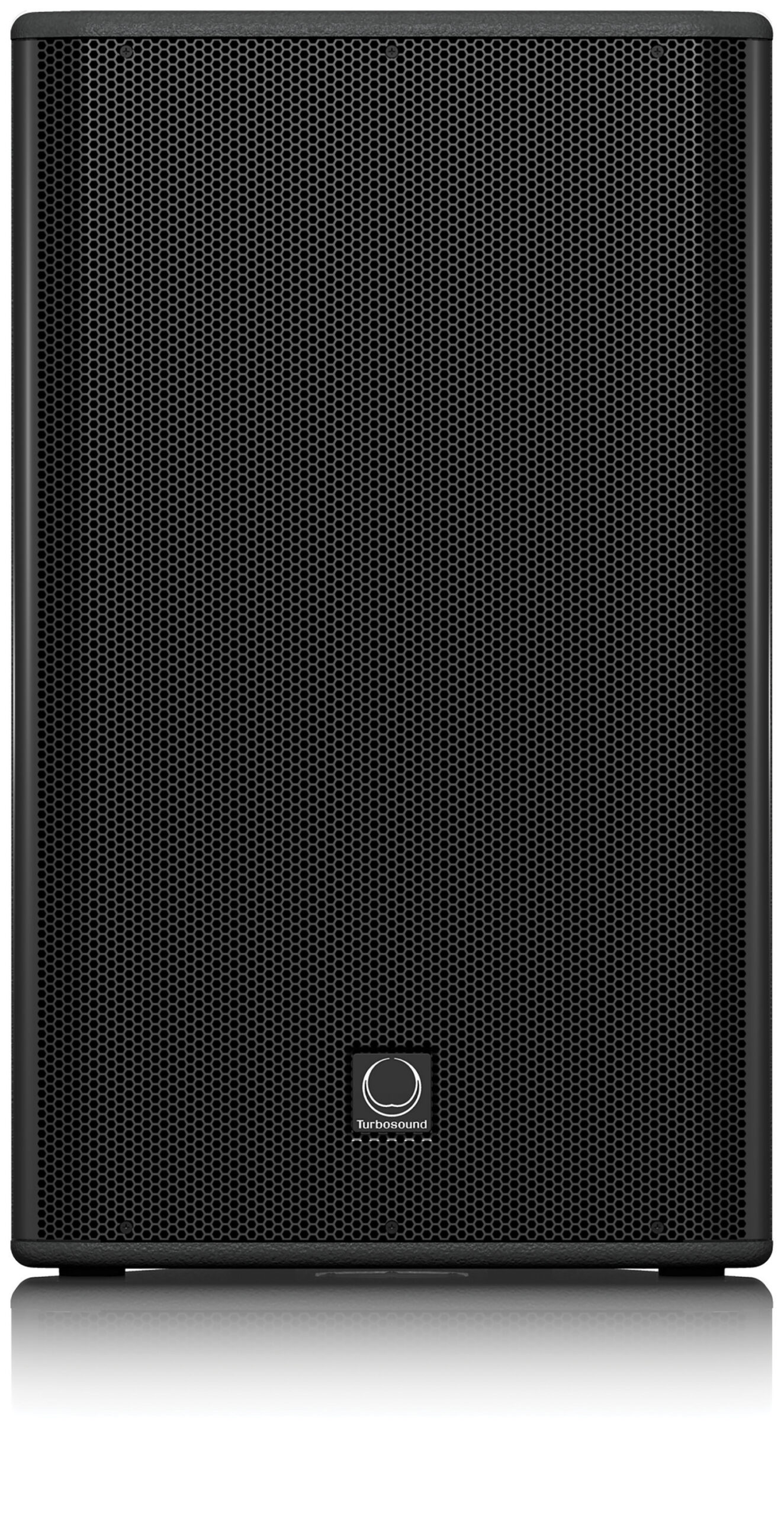

Turbosound MADRID TMS152 2 Way 15 Full Range Loudspeaker

The 2 way full range TMS152 is a switchable passive/bi-amp 15 3,200 Watt loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement applications. The TMS152 is designed to work in conjunction with TURBOSOUND loudspeaker management systems, providing optimal performance for FOH, side and drum fill applications, as well as offering considerable flexibility to readily adapt to varying venue requirements. The TMS152 loudspeaker features a carbon fibre loaded 15 low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and an titanium dome 1.4 neodymium motor compression driver mounted on a 75° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5/8 ) birch plywood, and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. The TMS152 includes internal M10 threaded rigging points for permanent installation, a dual-angle pole mount socket for high or low height use with 35 mm poles/speaker stands to optimise audience coverage, and durable handles for easy transport. A rear panel connector plate carries two Neutrik Speakon* NL4 connectors for input and link connections to additional enclosures.

• 2 way full range loudspeaker for portable PA and installation applications
• Dual angle pole mount for accurate audience coverage
• Durable handles for easy lifting and carrying
• Multiple internal rigging points for installation applications

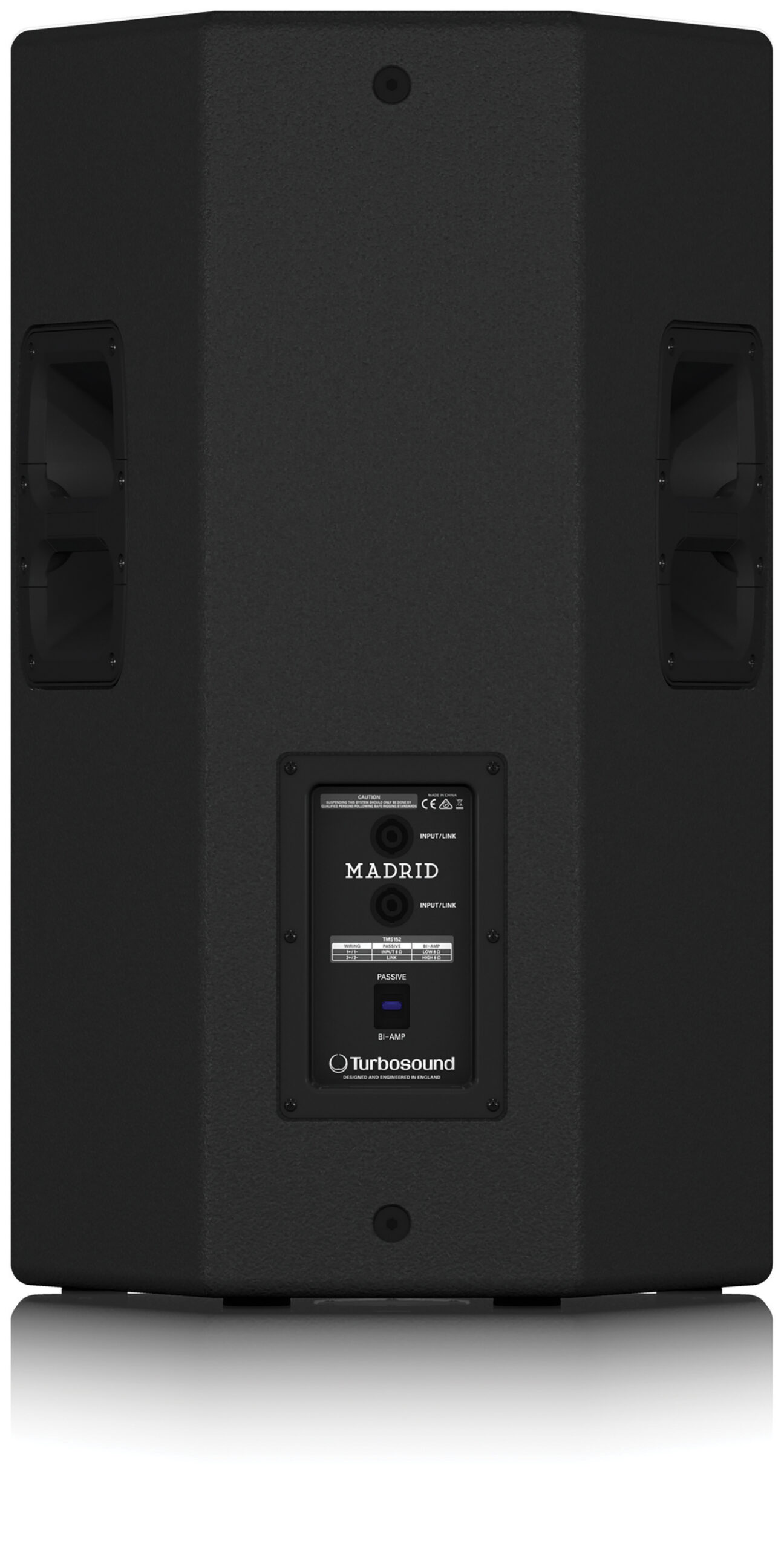

• Neutrik speakON* NL4 connectors for reliable long life operation
• 800 Watts continuous, 3,200 Watts peak power
• Ideal for FOH, side and drum fill applications
• Carbon fibre loaded 15″ low frequency driver with inside/outside wound coil
• Titanium dome 1.4 inch neodymium motor compression driver
• Switchable passive/bi-amp operation for flexibility of use
• Low distortion waveguide provides 75° H x 50° V dispersion
• 15 mm (5/8 inch) birch plywood enclosure with hard wearing semi matt black paint finish
• Rugged powder coated perforated steel mesh grille

Features

• Colour Black
• Packaging Retail Box
• Item priced per 1
• Wood weight N/A
• Inner box quantity N/A
• Packaged Height (cm) 716
• Supplier Ref. 000-B6100-00010
• Display Footprint (mm) 749x475x461
• Packaged Width (cm) 432
• Inner box (HxWxL mm) N/A
• Bass Driver (mm) 381
• Horn Dispersion 75º H X 50º V @ -6 dB Points
• Product Dimensions (mm) 716x432x406
• Weight (kg) 27.7
• Product EAN 4033653023078
• Gross weight outer carton (kg) N/A
• Outer box quantity N/A
• Frequency Response (Hz) 55 Hz – 20 kHz ±3 dB 45 Hz – 20 kHz -10 dB
• Transport dimensions (mm) 749x475x461
• Packaged dimensions (HxWxL mm) 749x475x461
• Packaged Depth (cm) 406
• Net weight (kg) 27.7
• Outer box (HxWxL mm) N/A
• Paper weight (kg) 3.12
• Plastic weight (kg) 0.78
• Peak Music Power (W) 3,200
• Gross Weight (Packaged) (kg) 31.6
• Impedance (Ohms) 8 Ohm
• Compression Driver (mm) 1 x 1.4 inch (36 mm) HF compression driver
