Art Pro Audio USB Mix

The ART USB Mix Three Channel Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analogue signals from a variety of audio sources to USB Audio. The USB Mix provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording.

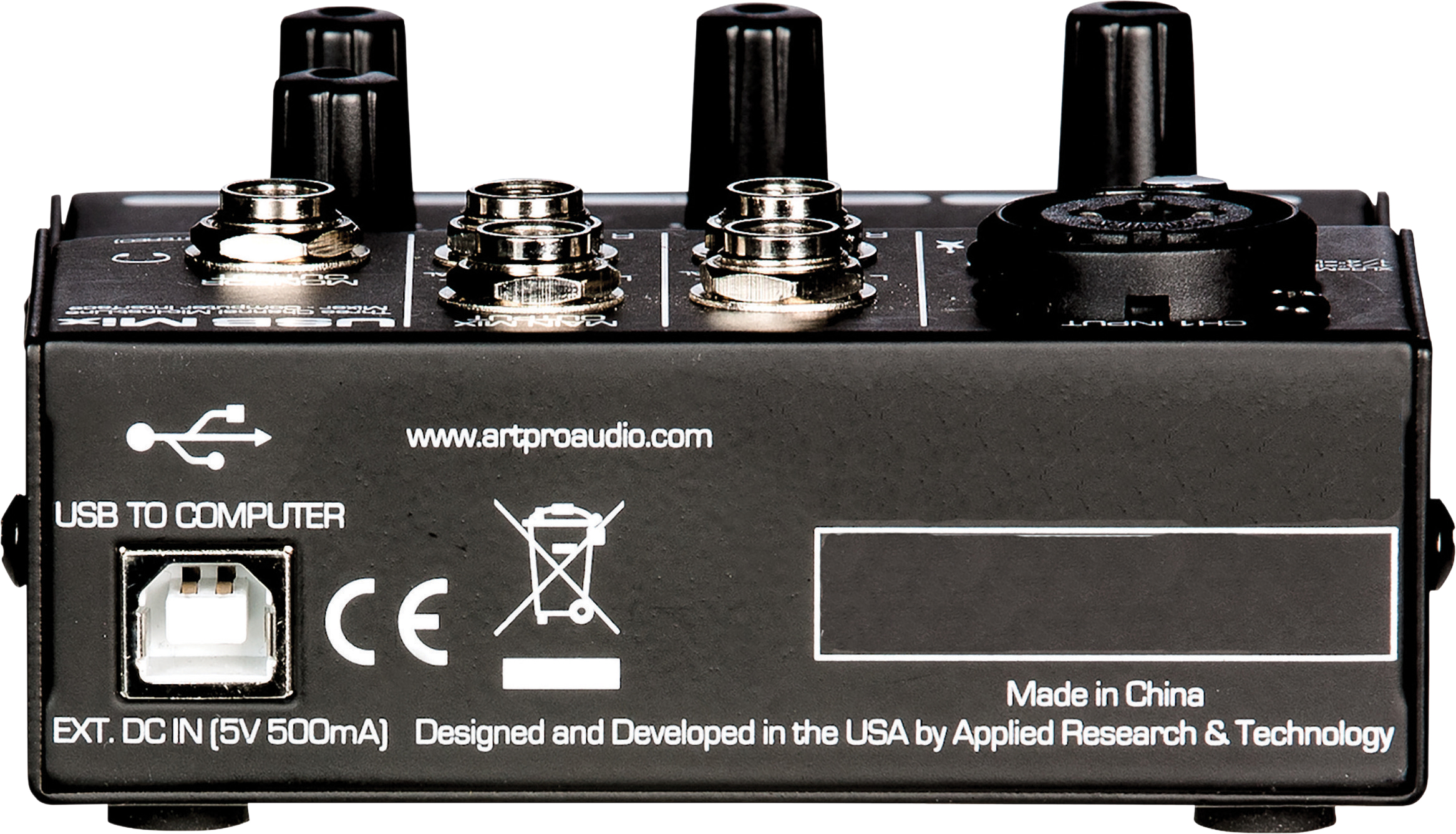

• USB powered, no external power supply needed when used with a computer
• Green/Red LED signal/clip indicator
• USB 2.0 compliant
• Switchable low noise +48V phantom power
• 1/4-inch TRS output jacks work with balanced or unbalanced lines
• Independent controls for both sets of inputs, main output, and headphone monitor
• Switchable assignment of USB playback to channels 2 and 3
• USB cable, AC adapter, and Audacity recording software included
• Balanced XLR or unbalanced 1/4-inch Instrument inputs with switchable impedance
• Balanced 1/4-inch TRS inputs for stereo or mono line-level sources
• Stereo 1/4-inch TRS headphone jack with independent level control for output monitoring

Features

• Item priced per 1
• Output Impedance <1k Ohm (balanced 1/4 inch), <500 Ohm (unbalanced 1/4 inch) 100 Ohm (Monitor output)
• Power Requirements 5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical
• Packaging Retail Box
• Input Impedance 240k Ohm (Inst-HiZ), 20k Ohm (Line) (Ch 1, Ch2-Ch3 1/4? inputs) > 4k Ohm (Ch1 XLR input)
• Colour Black
• Product EAN 0840402020592
• Gross weight outer carton (kg) 9.3
• Product Dimensions (mm) 41x101x121
• Inputs XLR balanced / 1/4 inch unbalanced ‘Combo’ jack (ch1 input) 1/4 inch balanced or unbalanced (Ch2-Ch3 inputs)
• Packaged Width (cm) 101
• Packaged Height (cm) 41
• Supplier Ref. USBMIXE4
• Transport dimensions (mm) 130x50x110
• Packaged dimensions (HxWxL mm) 50x110x130
• Packaged Depth (cm) 121
• Frequency Response (Hz) 20 Hz – 20 kHz (+0, -1 dB)
• Outer box quantity 12
• Net weight (kg) 0.5
• Output 1/4 inch TRS balanced (Main Mix outputs) 1/4 inch TRS stereo (Monitor output)
• Gross Weight (Packaged) (kg) 0.8
• Outer box (HxWxL mm) 290x250x630
• Paper weight (kg) 0.3
• Offer to Amazon? No
